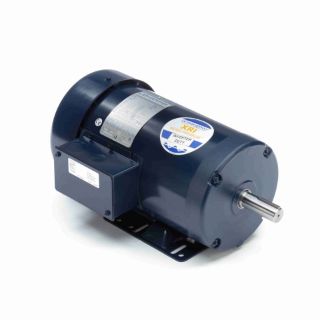

E2107 MAR

Name: E2107 MAR
Brand: Marathon Electric Motors
SKU: E2107 MAR
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

E2107

product.name:

E2107 MAR

Availability:

Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

145TTFR16035

Features

Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2007 C-Face Footed models are rated 60/50 Hz, same HP 1.15 Service Factor on sinewave, 1.0 Service Factor on IGBT power F1 conduit box on Rigid Base, F3 on C-Face Footed (Rigid Base) motors Motor will accept a C-face kit Shaft slinger, Class F insulation

Specifications

Assembly/Box Mounting:	F1 ONLY
C Dim (IN):	14.75
CE:	Y
Connection Drawing Number:	005010-01ME
Country of Origin:	United States of America
CSA:	Y
Current:	5.8/2.9
DE Bearing Size:	6205
DE Bearing Type:	Ball
Duty:	Continuous
Efficiency:	86.5
Electrical Type:	Squirrel Cage Induction Run
Enclosure Type:	Totally Enclosed Fan Cooled
Frame Length (IN):	8.5
Frame Material:	Rolled Steel
Frame Size:	145
Frame Suffix:	T
Frame Type:	145T
Frequency:	60
Harmonized Tariff Code:	8501.52.4000
HP:	2
Insulation Class:	F
IP Code:	43
KVA Code:	L
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	B
Number of Poles:	4
Number of Speeds:	1
ODE Bearing Size:	6203
ODE Bearing Type:	Ball
Outline Drawing Number:	028753-850
Phases:	3
Power Factor:	75.6
Power Rating (HP):	2
Power Rating (kW):	1.5
Resistance Main:	6
Rotation:	Reversible
Service Factor:	1.15
Shaft Diameter (IN):	0.875
Shaft Extension:	2.37
Shaft Type:	T
Speed:	1745
Speed Max:	1745
Starting Type:	Across The Line
Type of Overload Protector:	No
UL:	Recognized
Voltage:	230/460
