E100E SHD

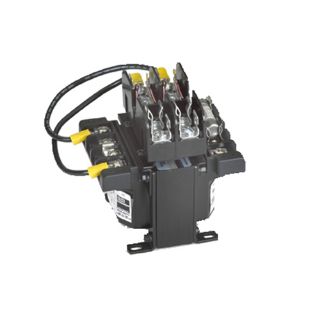

Picture of E100E SHD
Actual Product May Vary From Image

Product Details

Manufacturer:
SolaHD (Emerson)
Manufacturer part number:
E100E
product.name:
E100E SHD
CBT Inventory
1
Vendor Inventory
Loading...
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

SolaHD

Type

SBE Encapsulated Series Transformers

Description

Encapsulated Industrial Control Transformer 100VA, Volts Primary: 120x240, Volts Secondary: 24, Frequency: 60 HZ

Application

Industrial

Standards

cULus Listed: E77014, UL 506, CSA C22.2 No. 66, RoHS Compliant

Features

"50-1,000 VA, 50/60 Hz, suitable for world wide applications. Interleaved copper windings reduce I2R losses and maximize efficiency. 55 DEG C/131 DEG F rise, 105 DEG C insulation system to minimize heat. Epoxy encapsulated to protect cores and coils against moisture, dirt, and other contaminants. Meets or exceeds NEMA Standard ST 1 and ANSI C89.1 for load inrush capability. Integrally molded, flame retardant (IEC 707/ISO Class 1210) terminal blocks provide greater terminal contact area and improved conductivity. Heavy gauge steel mounting plate. Mounting dimensions are compatible with similar control transformers. Secondary fuse holders (FB2X) included for 13/32"" x 1-1/2"" cartridges (fuses not included). Factory installed fuse holders are available (see WA and WB options)."

Specifications

Country of Origin:VN
Frequency Rating:60 Hz
Height:2.96 in
KVA Rating:0.1
Length:3.39 In
Mounting:Heavy Gauge Steel Mounting Plate
Number of Phases:1
Primary Voltage:120 x 240 Volt Primary
Secondary Voltage:24 Volt Secondary
Wattage:75 W
Width:4.36 in

Resources

Spec SheetWarranty
