E 3 7/16 MSG

Name: E 3 7/16 MSG
Brand: Martin Sprocket & Gear
SKU: E 3 7/16 MSG
Availability: InStock

E 3 7/16 MSG

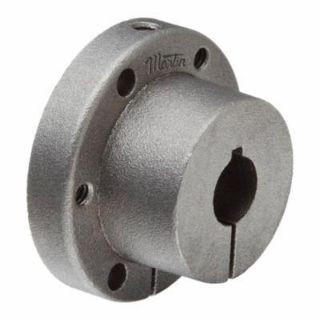

Actual Product May Vary From Image

Product Details

Manufacturer:

Martin Sprocket & Gear

Manufacturer part number:

E 3 7/16

product.name:

E 3 7/16 MSG

CBT Inventory

Vendor Inventory

Availability:

Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Martin

Type

Standard

Description

Martin QD Bushing, Standard, 3-7/16 in Bore Dia, 3.834 in Barrel Dia, 7-1/2 in Hub Dia, 5 in Bolt Circle, 6 in Flange Dia, 3/4 in Flange Thickness, 3 Bolt Holes, 1/2-13 x 2-3/4 in Screw, 20000 in-lb, 2-5/8 in Overall Length, 1/16 x 7/8 in Keyway, Ductile Iron

Features

Size E bushing
QD (quick detachable) bushings are designed for conventional mounting or reverse mounting
These bushings have a flange

Specifications

Barrel Diameter:	3.834 in
Bolt Circle Diameter:	5 in
Bore Diameter:	3-7/16 in
Country of Origin:	US
Flange Diameter:	6 in
Flange Thickness:	3/4 in
Hub Diameter:	7-1/2 in
Keyway Size:	1/16 x 7/8 in
Material:	Ductile Iron
Number of Bolt Holes:	3
Overall Length:	2-5/8 in
Screw Size:	1/2-13 x 2-3/4 in
Torque Rating:	20000 in-lb
