DNF18-250FIB-E PAN

Name: DNF18-250FIB-E PAN
SKU: DNF18-250FIB-E PAN
Availability: OutOfStock

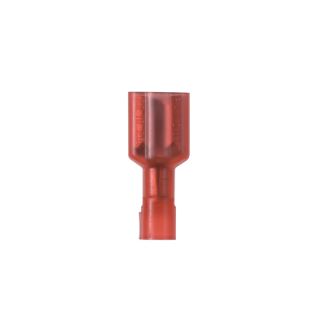

Actual Product May Vary From Image

Product Details

Manufacturer part number:

DNF18-250FIB-E

product.name:

DNF18-250FIB-E PAN

CBT Inventory

Vendor Inventory

Availability:

Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Panduit®

Type

Loose Piece Vibration-Resistant

Description

Panduit® Pan-Term® disconnects are designed and precision made to function as a reliable method of making quick, repeatable interconnections. Available with nylon, premium nylon or vinyl insulation or non-insulated.

Panduit® Pan-Term® Female Disconnect, Loose Piece Vibration-Resistant, Series: DNF-FIB, Copper Stranded Conductor, 22 to 18 AWG Conductor, 0.25 x 0.032 in Tab, Butted Seam/Funnel Entry Barrel, Crimp Terminal, 600 VAC, Specifications: 9/32 in L Wire Strip, 0.14 in Dia Maximum Wire Nylon Insulation, 221 deg F, Brass, Red, TiN Plated, 0.84 in L x 0.35 in W x 0.22 in H Dimensions, Fully Insulated

Application

For making quick and repeatable interconnections

Standards

Features

Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
Fully insulated design provides protection from electrical shorts
Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection

Specifications

Barrel Type:	Butted Seam/Funnel Entry
Color:	Red
Conductor Size:	22 AWG
Conductor Type:	Copper Stranded
Country of Origin:	MX
Dimensions:	0.84 in L x 0.35 in W x 0.22 in H
Finish:	TiN Plated
Insulated:	Fully Barrel Insulated
Material:	Brass
Series:	DNF-FIB
Specifications:	0.136 in Dia Nylon Insulation, 0.28 in Mounting Hole Size, 9/32 in L Wire Strip
Tab Size:	0.25 in W x 0.032 in THK
Temperature Rating:	221 deg F
Terminal Type:	Crimp
Voltage Rating:	600 VAC
