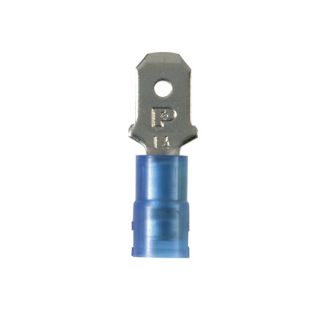

DNF14-250M-C PAN

Name: DNF14-250M-C PAN
SKU: DNF14-250M-C PAN
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer part number:

DNF14-250M-C

product.name:

DNF14-250M-C PAN

CBT Inventory

Vendor Inventory

Availability:

Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Panduit®

Type

Barrel Insulated Loose Piece Vibration-Resistant

Description

Panduit® Pan-Term™ Disconnect, Barrel Insulated Loose Piece Vibration-Resistant, Series: DNF-M, Stranded Conductor, 16 to 14 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Sleeve/Standard Barrel, Male Terminal, 600 VAC, Specifications: 0.162 in Dia Maximum Nylon Insulation, 9/32 in L Wire Strip, Standard Barrel Configuration, 221 deg F, Copper, Blue, Nickel Plated, 0.9 in L x 0.25 in W Dimensions

Standards

Features

Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
Premium nylon insulation retains its shape when crimped and provides a tight grip around the wire insulation for maximum strain relief
Fully insulated design provides protection from electrical shorts
Oversized housing designed for maximum versatility to mate with most commercially available fully insulated female disconnects
Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
Premium nylon fully insulated

Specifications

Barrel Type:	Insulation Grip Sleeve/Standard
Color:	Blue
Conductor Size:	16 to 14 AWG
Conductor Type:	Stranded
Country of Origin:	MX
Dimensions:	0.9 in L x 0.25 in W
Finish:	Nickel Plated
Material:	Copper
Series:	DNF-M
Specifications:	0.162 in Dia Maximum Nylon Insulation, 9/32 in L Wire Strip, Standard Barrel Configuration
Tab Size:	0.25 in W x 0.032 in THK
Temperature Rating:	221 deg F
Terminal Type:	Male
Voltage Rating:	600 VAC
