DNF14-250FIM-L PAN

Name: DNF14-250FIM-L PAN
SKU: DNF14-250FIM-L PAN
Availability: InStock

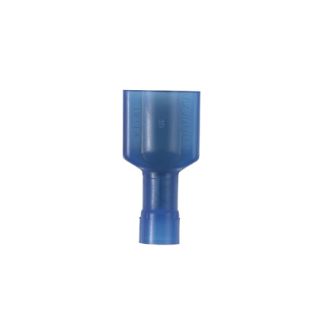

Actual Product May Vary From Image

Product Details

Manufacturer part number:

DNF14-250FIM-L

product.name:

DNF14-250FIM-L PAN

CBT Inventory

100

Vendor Inventory

Availability:

Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

This product has a minimum quantity of 50

Description

Brand Name

Panduit®

Type

Loose Piece Vibration-Resistant

Description

Panduit® Pan-Term™ Male Tab Disconnect, Loose Piece Vibration-Resistant, Series: DNF-FIM, 16 to 14 AWG Conductor, 0.25 x 0.032 in Tab, Butted Seam/Funnel Entry Barrel, 600 VAC, Specifications: 7.1 mm L Wire Strip, 0.16 in Dia Maximum Wire Nylon Insulation, 221 deg F, Brass, Blue, Nickel Plated, 0.9 in L x 0.42 in W x 0.27 in H Dimensions

Standards

Features

Male tab can be inserted and removed from the female disconnect without the use of tools for lower installed cost
Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
Internal barrel serrations assure good wire contact and maximum tensile strength
Insulation grip sleeve
Nylon barrel insulated

Specifications

Barrel Type:	Butted Seam/Funnel Entry
Color:	Blue
Conductor Size:	16 to 14 AWG
Conductor Type:	Stranded
Country of Origin:	MX
Dimensions:	0.9 in L x 0.42 in W
Finish:	Nickel Plated
Material:	Brass
Series:	DNF-FIM
Specifications:	0.158 in Dia Maximum Nylon Insulation, 9/32 in L Wire Strip, Funnel Entry Barrel Configuration
Tab Size:	0.25 in W x 0.032 in THK
Temperature Rating:	221 deg F
Terminal Type:	Male
Voltage Rating:	600 VAC
