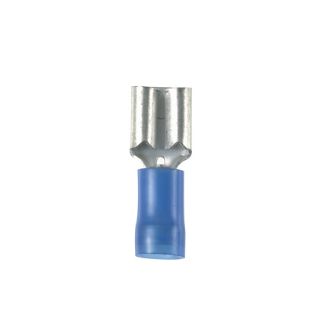

DNF14-250-C PAN

Name: DNF14-250-C PAN
SKU: DNF14-250-C PAN
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer part number:

DNF14-250-C

product.name:

DNF14-250-C PAN

CBT Inventory

Vendor Inventory

Availability:

Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Panduit®

Type

Loose Piece Vibration-Resistant

Description

Panduit® Pan-Term® disconnects are designed and precision made to function as a reliable method of making quick, repeatable interconnections. Available with nylon, premium nylon or vinyl insulation or non-insulated.

Panduit® Pan-Term™ Female Disconnect, Loose Piece Vibration-Resistant, Series: DNF, Stranded Copper Conductor, 16 to 14 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Funnel Entry/Insulation Grip Sleeve Barrel, Crimp Terminal, 300 VAC, Specifications: 9/32 in L Wire Strip, 0.16 in Dia Maximum Wire Nylon Insulation, 194 deg F, Brass, Blue, Tin Plated, 0.83 in L x 0.29 in W x 0.12 in H Dimensions, Insulated: Insulated

Application

For making quick and repeatable interconnections

Standards

Features

Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
Internal barrel serrations assure good wire contact and maximum tensile strength
Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection

Specifications

Barrel Type:	Funnel Entry/Insulation Grip Sleeve
Color:	Blue
Conductor Size:	14 AWG
Conductor Type:	Stranded
Country of Origin:	MX
Dimensions:	0.83 in L x 0.29 in W x 0.12 in H
Finish:	Tin Plated
Insulated:	Insulated
Material:	Brass
Series:	DNF
Specifications:	0.162 in Dia Nylon Insulation, 9/32 in Mounting Hole Size, 9/32 in L Wire Strip
Tab Size:	0.25 in W x 0.032 in THK
Temperature Rating:	194 deg F
Terminal Type:	Crimp
Voltage Rating:	300 VAC
