DNF10-250FI-L PAN

Name: DNF10-250FI-L PAN
SKU: DNF10-250FI-L PAN
Availability: InStock

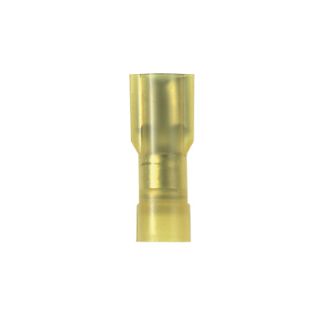

Actual Product May Vary From Image

Product Details

Manufacturer part number:

DNF10-250FI-L

product.name:

DNF10-250FI-L PAN

CBT Inventory

Vendor Inventory

Availability:

Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Panduit®

Type

Loose Piece Vibration-Resistant

Description

Panduit® Pan-Term™ Female Disconnect, Type DNF-FI Loose Piece Vibration-Resistant, Stranded Conductor, 10 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Funnel Entry/Sleeved Barrel, Crimp Terminal, 600 V, Specifications: 0.22 in Dia Nylon Insulation, 9/32 in Mounting Hole Size, 9/32 in L Wire Strip, 221 deg F, Brass, Yellow, Tin Plated, 0.95 in L x 0.36 in W x 0.27 in H Dimensions, Insulated: Fully Insulated

Application

For making quick and repeatable interconnections

Standards

Features

Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
Expanded wire entry designed to accommodate wire with a larger insulation thickness
Fully insulated design provides protection from electrical shorts
Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection

Specifications

Barrel Type:	Funnel Entry/Insulation Grip Sleeve
Color:	Yellow
Conductor Size:	10 AWG
Conductor Type:	Stranded
Country of Origin:	MX
Dimensions:	0.95 in L x 0.36 in W x 0.27 in H
Finish:	Tin Plated
Insulated:	Fully Insulated
Material:	Brass
Series:	DNF-FI
Specifications:	0.22 in Dia Nylon Insulation, 9/32 in Mounting Hole Size, 9/32 in L Wire Strip
Tab Size:	0.25 in W x 0.032 in THK
Temperature Rating:	221 deg F
Terminal Type:	Crimp
Voltage Rating:	600 VAC
