DMM-B-44/100 BSF

Name: DMM-B-44/100 BSF
Brand: Bussmann
SKU: DMM-B-44/100 BSF
Availability: OutOfStock

DMM-B-44/100 BSF

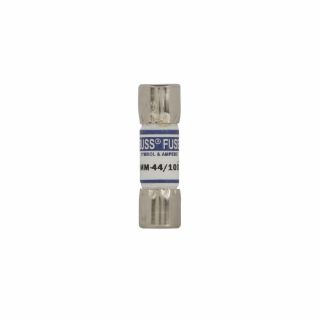

Actual Product May Vary From Image

Product Details

Manufacturer:

Bussmann

Manufacturer part number:

DMM-B-44/100

product.name:

DMM-B-44/100 BSF

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 7 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Bussmann

Type

Fast Acting

Description

Bussmann Fuse, Fast Acting, Series: DMM-B, Indicating/Non-Indicating: Non-Indicating, 0.44 A, 1000 VAC/VDC, 20 kA Interrupt, Ferrule Terminal, Holder Mount, Cartridge Body Type, Melamine, Maroon, 10 mm Dia x 34.9 mm L Body Size

Application

For protection of metering instruments and multimeter, safety and security systems

Standards

CE Certified | CSA Certified | UL 248-8/File No. E19180 | UL Recognized

Features

Designed for multi-meters only
Maximum temperature 28 deg C in 22 deg C ambient temperature when carrying 100% of rated current
Not intended for branch circuit protection
Nickel plated brass end caps
Minimum interrupt 400% of rated current at rated voltage

Specifications

Amperage Rating:	0.44 A
Body Size:	10 mm Dia x 34.9 mm L
Body Type:	Cartridge
Class:	Supplemental
Color:	Maroon
Country of Origin:	MX
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	20 kA
Material:	Melamine
Mounting Type:	Holder
Series:	DMM-B
Terminal Type:	Ferrule
Voltage Rating:	1000 VAC/VDC
