DMM-B-11A BSF

Name: DMM-B-11A BSF
Brand: Bussmann
SKU: DMM-B-11A BSF
Availability: OutOfStock

DMM-B-11A BSF

Actual Product May Vary From Image

Product Details

Manufacturer:

Bussmann

Manufacturer part number:

DMM-B-11A

product.name:

DMM-B-11A BSF

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 7 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Bussmann

Type

Supplemental

Description

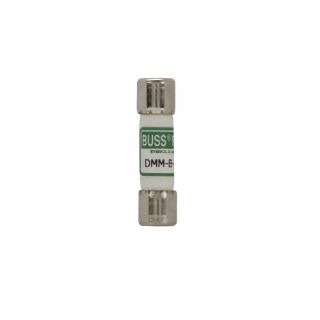

Bussmann Fast Acting Fuse, Series: DMM-B, Non-Indicating, 11 A, 1000 VAC/VDC, 10 kA Interrupt, Ferrule Terminal, Holder Mounting, Cartridge Body, Melamine, Maroon, 13/32 in Dia x 1-1/2 in L Body

Application

Metering Instruments and Multimeter Protection Applications

Standards

CSA Certified | CE Certified | UL 248-8 | UL Recognized | UL File No. E19180

Features

Maximum temperature 69 deg C in 22 deg C ambient temperature when carrying 100% of rated current
Nickel plated brass endcaps
Not intended for branch circuit protection

Specifications

Amperage Rating:	11 A
Body Size:	10 mm Dia x 38.1 mm L
Body Type:	Cartridge
Color:	Maroon
Country of Origin:	MX
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	10 kA
Material:	Melamine
Mounting Type:	Holder
Series:	DMM-B
Terminal Type:	Ferrule
Voltage Rating:	1000 VAC/VDC
