CX85 GAT

Name: CX85 GAT
Brand: Gates
SKU: CX85 GAT
Availability: OutOfStock

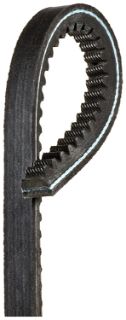

Actual Product May Vary From Image

Product Details

Manufacturer:

Gates

Manufacturer part number:

CX85

product.name:

CX85 GAT

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Gates

Alternate Supplier #

90142085

Description

Built for superior performance on heavy-duty classical cross-section drives. The raw edge, Ethylene Elastomer construction and special notch design makes the Tri-Power belt especially suited for small diameter pulleys and back-side idler drives.

Features

Belt edge is machined for even sheave groove contact, resulting in smoother running, less slip and wear. Flex-bonded cords are strongly forged to the belt body, resulting in equal load distribution and absorption of bending stress without cord deterioration. 15% capacity increase over wrapped belts. Notches molded into the belt during manufacturing increase flexibility, making this belt well suited for drives with smaller diameter sheaves. Suitable for all industrial applications, particularly where small or sub-minimal sheave diameters are required. Meets ARPM/RMA IP-3-2 oil and heat resistant standards and IP-3-3 static conductivity requirements. REACH and RoHS 2 compliant.

Specifications

Angle:	38
Belt Back Side:	Smooth
Belt Inside:	Notched
Belt/Slab:	Belt
Color:	Black
Construcao:	Bandless
Cord Material:	Polyester
Country of Origin:	US
Effective Length (in):	89.213
Effective Length (mm):	2266
GC Base Product:	Tri-Power® Belts - CX Section
Harmonized Tariff Code:	4010.34.3000
Material:	Ethylene Elastomeric
Max Temp (°C):	+121
Max Temp (F):	+250
Min Temp (°C):	-51
Min Temp (F):	-70
Number of Ribs/Strands:	1
OC (in):	89.53
OC (mm):	2274
Proposition 65:	NO
Secao:	CX
Sided:	Single Sided
Static Conductive:	Yes
Thickness (in):	0.51
Thickness (mm):	13
Top Width (in):	0.866
Top Width (mm):	22
Unitset (V80):	No
