CRF15 HWD

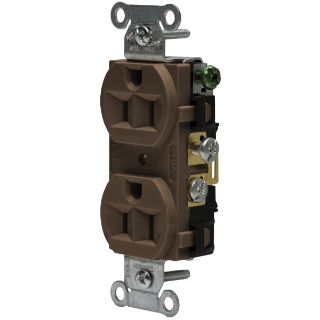

Picture of CRF15 HWD
Actual Product May Vary From Image

Product Details

Manufacturer:
Hubbell Wiring Device-Kellems
Manufacturer part number:
CRF15
product.name:
CRF15 HWD
CBT Inventory
7
Vendor Inventory
Loading...
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Wiring Device-Kellems

Type

1-Phase Duplex Finder Groove Face Self-Grounding Standard Traditional Screw Mount

Alternate Supplier #

Grainger - 4D194

Description

Wiring Device-Kellems Straight Blade Receptacle, 1-Phase Duplex Finder Groove Face Self-Grounding Standard Traditional Screw Mount, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, 5-15R NEMA Rating, Commercial/Specification Grade, -40 to 75 deg C, Side Wired Terminal, Nylon, Brown, 1.32 x 0.83 x 3.28 in

Application

Indoor Dry Environment

Standards

NEMA WD1/WD5 | UL 498 | CSA C22.2 No. 42 | Federal Specification W-C-596 | UL94 V-2 Flammability Rating

Features

  • Easy access split circuit tab which makes installation easy
  • Fork terminal capable which makes installation easy
  • Triple wipe contact
  • Screw mounted

Specifications

Amperage Rating:15 A
Color:Brown
Country of Origin:CN
Dimensions:1.32 x 0.83 x 3.28 in
Grade:Commercial/Specification
Horsepower:1/2 hp
Material:Composite/Thermoplastic
NEMA Rating:5-15R
Number of Poles:2
Number of Wires:3
Temperature Rating:-40 to 75 deg C
Terminal Type:Back/Side Wire
Voltage Rating:125 VAC
