Home / CR20-I LEV

CR20-I LEV

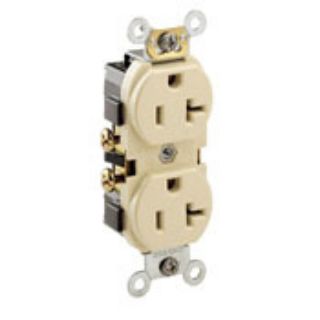

Picture of CR20-I LEV
Actual Product May Vary From Image

Product Details

Manufacturer:
Leviton Manufacturing
Manufacturer part number:
CR20-I
product.name:
CR20-I LEV
CBT Inventory
0
Vendor Inventory
Loading...
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Leviton®

Type

1-Phase Duplex Indented Face

Alternate Supplier #

Grainger - 6A702

Description

Leviton® line of heavy duty specification grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper resistant and more, these commercial grade devices are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings.
Leviton® Straight Blade Receptacle, 1-Phase Duplex Indented Face, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial Grade, -40 to 60 deg C, Side Wire Terminal, Thermoplastic, Ivory, 46 in H x 1.56 in W x 19 in D Dimensions

Standards

ANSI (C73) | CSA C22.2 No. 42 File No. 152105 | NOM (057) | UL 498 File No. E13399 | UL Federal Specification WC-596 File No. E13399 | UL 94 Flammability Rating

Features

  • Manufactured to withstand the demands of commercial and institutional applications
  • Heavy duty brass power contacts for maximum conductivity and plug retention
  • Shallow design for maximum wiring room in box

Specifications

Amperage Rating:20 A
Color:Ivory
Country of Origin:US
Dimensions:4.06 in H x 1.56 in W x 1.09 in D
Enclosure:NEMA WD-1/WD-6
Grade:Commercial
Horsepower:1 hp
Material:Thermoplastic
NEMA Rating:NEMA 5-20R
Number of Poles:2
Number of Wires:3
Temperature Rating:-40 to 60 deg C
Terminal Type:Side Wire
Voltage Rating:125 VAC
