CPB21 HWD

Name: CPB21 HWD
Brand: Hubbell Wiring Device-Kellems
SKU: CPB21 HWD
Availability: InStock

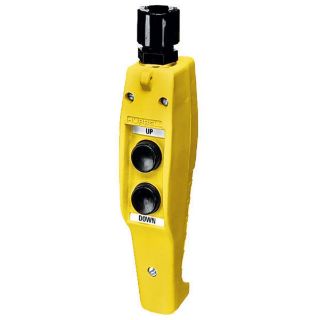

Actual Product May Vary From Image

Product Details

Manufacturer:

Hubbell Wiring Device-Kellems

Manufacturer part number:

CPB21

product.name:

CPB21 HWD

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Wiring Device-Kellems

Type

1-Speed 2-Button Compact Non-Metallic Pilot Duty Standard

Description

Wiring Device-Kellems Pendant Pushbutton Station, 1-Speed 2-Button Compact Non-Metallic Pilot Duty Standard, Series: CPB, 250 VAC, 3 A, 2 Pole, 1NC-1NO Contact Configuration, 1 ph, Flush Operator, Legend: Up/Down, Momentary Pushbutton Actuator, Screw Connection, NEMA 4X NEMA Rating, Surface Mounting, -40 to 75 deg C Operating, Yellow/Black, 9.13 in H x 2.38 in W Dimensions

Application

Indoor/Outdoor Applications

Standards

UL 508 | CSA Certified

Features

1.06 in OD conduit entry
0.378 to 0.625 in cord
6 A at 120 VAC, 3 A at 240 VAC, 0.55 A at 250V AC, 1.1 A at 125 VDC amperage rating
Yellow enclosure and black operator
Flush round operator

Specifications

Actuator:	Momentary Pushbutton
Amperage Rating:	3 A
Color:	Yellow
Connection Type:	Screw
Contact Configuration:	1NC-1NO
Contact Form:	2NO
Contact Rating:	6 A at 120 VAC/3 A at 240 VAC
Country of Origin:	US
Dimensions:	9.13 in H x 2.38 in W
Legend:	Up/Down
Mounting Type:	Cable
NEMA Rating:	4X
Number of Operators:	2
Number of Poles:	2
Operating Temperature:	-40 to 75 deg C
Operator Type:	Flush
Phase:	1
Series:	CPB
Voltage Rating:	250 VAC
