CP-4 ILS

Name: CP-4 ILS
Brand: Ilsco
SKU: CP-4 ILS
Availability: InStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Ilsco

Manufacturer part number:

CP-4

product.name:

CP-4 ILS

CBT Inventory

Vendor Inventory

Availability:

Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

ILSCO®

Type

Type CP Compact

Description

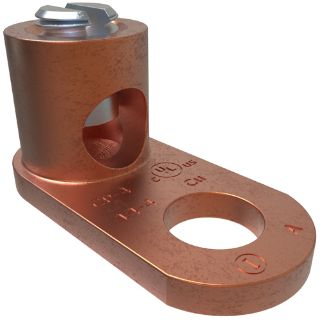

ILSCO® ClearChoice® Post Connector, Type CP Compact, Copper Conductor, 14 to 4 AWG Conductor, 1/4 in Stud, 1 Bolt Holes, 0.695 in L x 0.098 in THK Tongue, Straight Tongue, 2000 VAC, Specifications: Slotted Hex, 90 deg C, Copper, 1.0938 in L x 0.5313 in W x 0.5469 in H Dimensions

Application

For terminating connector

Standards

CSA File No. LR-29601 | UL 486A-B/UL 453G/UL File No. E6207

Features

Re-usable
Range taking for reduced inventories and flexibility and permits inventories to be kept to a minimum
Manufactured from high conductivity copper alloy provides long lasting reliable contact
Provides efficient use and flexibility in the field
Ensures reliability for copper conductor
Compact design saves space and reduces installation time
Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used
Application versatility
1-stud
For copper conductor only

Specifications

Conductor Size:	14 to 4 AWG
Conductor Type:	Copper
Country of Origin:	IN
Dimensions:	1.0938 in L x 0.5313 in W x 0.5469 in H
Material:	Copper
Number of Bolt Holes:	1
Specifications:	Slotted Hex
Stud Size:	1/4 in
Temperature Rating:	90 deg C
Tongue Size:	0.695 in L x 0.098 in THK
Tongue Type:	Straight
Voltage Rating:	2000 VAC
