Actual Product May Vary From Image

CJ 19/24B HUB PM RSB LOV

Name: CJ 19/24B HUB PM RSB LOV
Brand: Lovejoy
SKU: CJ 19/24B HUB PM RSB LOV
Availability: OutOfStock

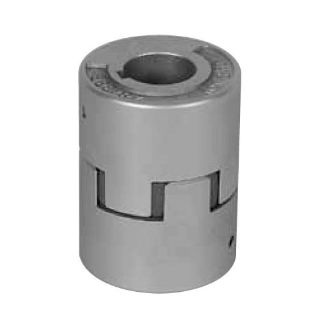

Lovejoy® 68514461154 CJ Series Rough Stock Bore Style B Curved Jaw Coupling Hub With Setscrew, 19/24 Coupling, 0.71 in Dia Bore, 0.98 in L Through Bore, 1.57 in Dia Hub, Powdered Metal

Manufacturer: Lovejoy

Manufacturer part number: 68514461154

Availability: Expected Leadtime 4 days

Estimated dates are contingent upon manufacturer stock.

CBT - CINCINNATI	CBT - SPRINGBORO	CBT - SIDNEY
0	0	0
CBT - LEXINGTON	CBT - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Lovejoy®

Type

Rough Stock Bore Style B

Description

Lovejoy® Curved Jaw Coupling Hub, Rough Stock Bore Style B, Series: CJ Series, 19/24 Coupling, 0.71 in Bore, 1.57 in Diameter Hub, 14000 rpm Maximum, 0.98 in Length Through Bore, 10-24 Screw, Powdered Metal, Metallic

Standards

ECCN EAR99

Features

Three-piece design that is easy to assemble
The curved jaw design incorporates both radial and axial curvature (crowning) to the elastomer (spider)
Hubs are offered in sintered iron, steel, aluminum, cast iron and nodular iron materials
No metal to metal contact and no lubrication required
Fail safe design due to the jaw in compression design (continues to function after the elastomer fails)
The CJ series covers a torque range of 67 to 247800 in-lb

Specifications

Bore Diameter:	0.71 in
Country of Origin:	US
Coupling Size:	19/24
Finish:	Metallic
Hub Diameter:	1.57 in
Length Through Bore:	0.98 in
Material:	Powdered Metal
Maximum Speed:	14000 rpm
Screw Size:	10-24
Series:	CJ Series
