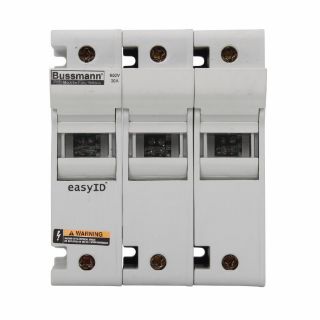

CH30J3I BSF

Name: CH30J3I BSF
Brand: Bussmann
SKU: CH30J3I BSF
Availability: InStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Bussmann

Manufacturer part number:

CH30J3I

product.name:

CH30J3I BSF

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 7 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Bussmann

Type

Finger Safe Modular

Description

Eaton's Bussmann series power distribution fuse blocks (PDFB) combine a fuse block and power distribution block into one component. This patented design simplifies your panel layout and uses up to 65% less panel space. Additionally, it lowers inventory costs while reducing installation time and labor by 33%. Bussmann series PDFBs are available for Class J ferrule and knifeblade fuses. PDFBs up to 60 amps feature DIN-Rail and panel mount versatility for ease of installation. Additionally, PDFBs use fewer wire connections, reducing watts loss and overall operating temperature of the panel

Bussmann Fuse Holder, Modular Padlockable, Series: CH Series, 600 VAC/VDC, 30 A, 3 Pole, 3, Class: J, 18 to 1 AWG Wire, DIN Rail/Panel Mount, -20 to 85 deg C, For Use With: Indicating Fuse, Thermoplastic, White, 3.84 in L x 2.83 in W x 4.59 in H

Application

Electrical Assemblies, Panels and OEMs Applications

Standards

Features

3 ph fuse extraction assures all phases are opened for service work
18 to 1 AWG single, 18 to 3 AWG dual at 75 deg C copper solid/stranded wire
Improved electrical safety with IP20 finger safe construction with lockout or tagout feature
Tin plated copper clip
35 mm DIN rail and panel (#6-32 UNC pan head recommended) mounting

Specifications

Amperage Rating:	30 A
Class:	J
Color:	White
Connection Type:	Box Lug
Country of Origin:	CN
Dimensions:	3.84 in L x 2.83 in W x 4.59 in H
Fuse Diameter:	0.81 in
Fuse Length:	2-1/4 in
Material:	Thermoplastic
Mounting Type:	DIN Rail/Panel
Number of Phases:	3
Number of Poles:	3
Series:	CH Series
Suitable For Use With:	Indicating Fuse
Temperature Rating:	-20 to 85 deg C
Voltage Rating:	600 VAC/VDC
Wire Size:	18 to 1 AWG

Customers who bought this item also bought

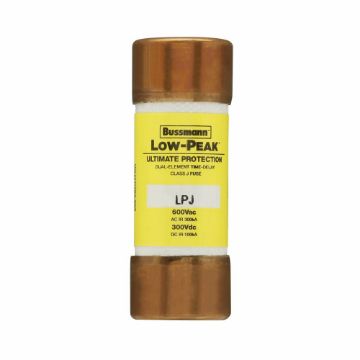

LPJ-15SP BSF
