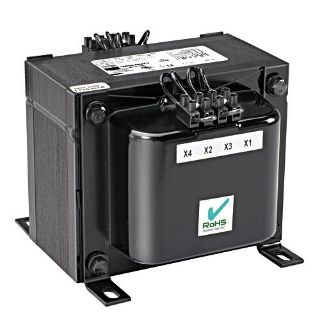

CE2000TH SHD

Name: CE2000TH SHD
Brand: SolaHD (Emerson)
SKU: CE2000TH SHD
Availability: InStock

Actual Product May Vary From Image

Product Details

Manufacturer:

SolaHD (Emerson)

Manufacturer part number:

CE2000TH

product.name:

CE2000TH SHD

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

SolaHD

Type

ICE International Series: 750-2,000 VA.

Description

Features:130 DEG C Insulation System, Standard:UL (CANADA AND US), CE, IEC, ANSI, Wattage:2000VA, Input Voltage:240/415/480, 230/400/460, 220/380/440V AC, Output Voltage:120/240, 115/230, 110/220V AC, Frequency: 50/60 HZ

Application

Industrial Automation and Control Equipment Power PLCs, Machine Tools, Robotics, Semiconductor Fabrication Equipment

Standards

cULus Listed: E77014, UL 506, CSA C22.2 No.66 IEC 61558-1, Iec 61558-2-2, RoHS Compliant

Features

IP20 touch-proof terminals, Copper windings, Epoxy encapsulated for cooler operation and increased reliability, 50/60 Hz frequency, 80 DEGC/176 DEGF Rise, 130 DEGC/266 DEGF insulation system for harsh, heavy duty applications, Meets or exceeds electrical requirements of NEMA, ANSI and IEC

Specifications

Country of Origin:	US
Enclosure:	IP20
Frequency Rating:	50/60 Hz
Height:	5.63 in
Insulation Class:	130 DEG
KVA Rating:	2
Length:	6.75 in
Mounting:	Mounting Feet
Number of Phases:	1
Power Factor:	50
Primary Voltage:	240/415/480 Volt Primary
Secondary Voltage:	120/240 Volt Secondary
Wattage:	1500 VA
Width:	6.38 in

Resources

Spec Sheet Warranty
