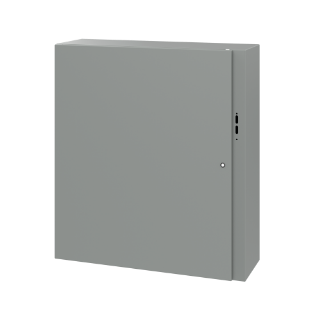

Picture of CDSC423812 HOF

Actual Product May Vary From Image

CDSC423812 HOF

Disconnect Encl. 42.00x38.00x1

Manufacturer: nVent HOFFMAN

Manufacturer part number: CDSC423812

Availability: Expected Leadtime 3 days

Estimated dates are contingent upon manufacturer stock.

CBT - CINCINNATI	CBT - SPRINGBORO	CBT - SIDNEY
0	0	0
CBT - LEXINGTON	CBT - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

nVent HOFFMAN

Type

Mild Steel Wall Mounted Industrial Disconnect Enclosures

Description

Concept Disconnect Enclosure Type 4, 42.00x38.00x12.00, Gray, Steel

Application

Power Distribution; Arc Flash Safety; Controls and Drives

Specifications

Body Thickness (Imperial):	14 ga
Body Thickness (Metric):	1.9 mm
Color:	Gray
Color Code:	ANSI 61
Concept Panel:	CP4236
Conductive Panel:	CP4236G
Country of Origin:	US
Depth:	12
Door Thickness (Imperial):	14 ga
Door Thickness (Metric):	1.9 mm
Finish:	Powder Coat
Height:	42 in
IP Rating:	IP66
Latch Quantity:	1
Latch Style:	3-point
Material:	Mild Steel
Modification Services:	Yes
Mounting (Imperial):	40.50 x 36.50 in
Mounting (Metric):	1029 x 927 mm
NEMA Rating:	4 Watertight
Panel Size (Imperial):	40.20 x 34.20 in
Panel Size (Metric):	1021 x 869 mm
Product Family:	Concept
Protection Rating:	NEMA Type 4
Size:	42.00x38.00x12.00 in
Sub Brand:	Concept
Type Number:	Type 4
Weight (Imperial):	65 lb
Width:	38
