CCP-1-30CC BSF

Name: CCP-1-30CC BSF
Brand: Bussmann
SKU: CCP-1-30CC BSF
Availability: OutOfStock

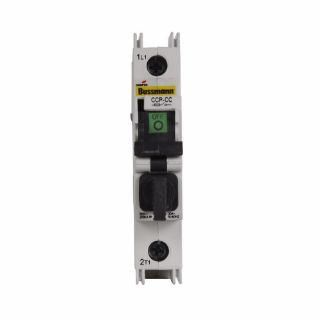

Actual Product May Vary From Image

Product Details

Manufacturer:

Bussmann

Manufacturer part number:

CCP-1-30CC

product.name:

CCP-1-30CC BSF

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 36 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Bussmann

Type

Compact Fused

Description

The revolutionary Bussmann series compact circuit protector (CCP) fused disconnect switch with CUBEFuse™ is 2/3 the footprint of a traditional fusible switch and provides a high 200 kA SCCR that can help increase assembly SCCR.

Bussmann Circuit Protector, Compact Fused, Series: CCP, 600 VAC/125 VDC, 30 A, 1 Pole, Class CC Fuse, DIN Rail Mount, Padlockable Handle Operator, -20 to 75 deg C Operating, 2.1 in Width, 3.7 in Height, 3.1 in D

Application

Branch Circuit Disconnect/Protection, Electrical Assemblies, Panels and EOEMs Applications

Standards

Features

Extremely compact design at 17.5 mm wide per pole
Disconnect rated to provide means for load isolation
IP20 finger safe construction with 10 AWG wire or larger
Built-in switch interlock capability prohibits removing the fuse under load
Open fuse indication
1/2 hp at 120 VAC horsepower rating

Specifications

Amperage Rating:	30 A
Country of Origin:	CN
Depth:	3.1 in
Fuse Type:	Class CC
Height:	3.7 in
Mounting Type:	DIN Rail
Number of Poles:	1
Operating Temperature:	-20 to 75 deg C
Operator:	Padlockable Handle
Series:	CCP
Voltage Rating:	600 VAC/125 VDC
Width:	2.1 in
Wire Size:	18 to 6 AWG
Wire Type:	Solid/Stranded Copper
