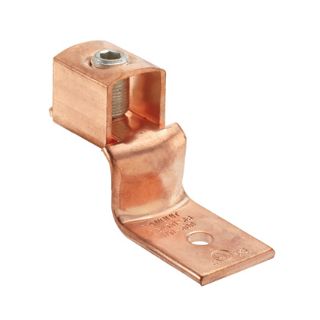

Actual Product May Vary From Image

CB70-14-CY PAN

Name: CB70-14-CY PAN
SKU: CB70-14-CY PAN
Availability: OutOfStock

Panduit® Pan-Lug™ CB70-14-CY Type CB Mechanical Connector Lug, 8 to 2 AWG Stranded Copper Conductor, 1/4 in Stud, 1 Bolt Holes, Electrolytic Copper

Manufacturer part number: CB70-14-CY

Availability: Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Qty:

Product Details

Brand Name

Panduit®

Type

1- Barrel

Description

Panduit® Pan-Lug™ Mechanical Connector Lug, Type CB, Stranded Copper Conductor, 8 to 2 AWG Conductor, 1/4 in Stud, 1 Bolt Holes, 0.47 in W x 0.08 in THK Tongue, Offset Floating Tongue, 600 VAC, Specifications: 1-Barrel, 90 A, 1/2 in L Collar, 90 deg C, Electrolytic Copper, 1.55 in L Dimensions

Application

For use with stranded copper code conductors applications

Standards

Features

Made from high strength electrolytic copper with steel screw to provide premium electrical and mechanical performance
Wide wire range taking capability minimizes inventory requirements
Internal pressure bar and V-bottom collar provide uniform clamping force on conductor to assure positive contact between conductor and connector
Inspection window to visually assure full conductor insertion
Plated steel setscrew provides high strength, durable electrical contact between conductor and connector
Range taking, high strength copper, internal pressure bar and v collar

Specifications

Conductor Size:	8 to 2 AWG
Conductor Type:	Stranded Copper
Country of Origin:	IN
Dimensions:	1.55 in L
Material:	Copper
Number of Bolt Holes:	1
Series:	CB Series
Specifications:	0.64 in H x 0.5 in W Collar, Slotted Head Screw, 90 A Current Rating
Stud Size:	1/4 in
Temperature Rating:	90 deg C
Tongue Size:	0.47 in W x 0.08 in THK
Tongue Type:	Offset Floating
Voltage Rating:	600 VAC
