CB-0812-06 ISO

Name: CB-0812-06 ISO
Brand: Isostatic
SKU: CB-0812-06 ISO
Availability: InStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Isostatic

Manufacturer part number:

104073

product.name:

CB-0812-06 ISO

CBT Inventory

Vendor Inventory

Availability:

Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

ISOSTATIC™

Type

Round Bore

Description

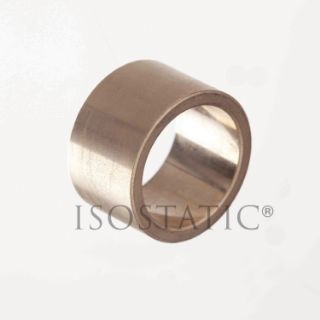

ISOSTATIC™ Century® Sleeve Bearing, Round Bore, 1/2 in Bore, 3/4 in OD, 3/4 in Width, -40 to 450 deg F, 3000 psi Maximum, 750 sfpm Maximum Velocity, 75000 psi/sq-ft/min Maximum PV, SAE 660 Cast Bronze Bearing

Standards

ASTM B505 | QOC-390B Type III B144-52-3B | REACH Compliant | PROP65: This product can expose you to chemicals including lead which is known to the state of California to cause birth defects or other reproductive harm. For more information go to www.P65WARNINGS.ca.gov

Features

Standard stock products
SAE 660/CA 932 copper 83%, tin 7%, lead 7% and zinc 3%
Non-porous, highly dense grain structure for long life
Offers good hardness, strength and wear resistance, excellent anti-frictional characteristics
Tensile strength of 35000 psi, yield strength of 27000 psi and brinell hardness of 72
Ideal for heavy loads at moderate speeds or light loads at high speeds
Products made with excess material to finish to stated nominal dimensions

Specifications

Bearing Material:	SAE 660 Cast Bronze
Bore Diameter:	1/2 in
Country of Origin:	US
Maximum Pressure:	3000 psi
Maximum PV Rating:	75000 psi/sq-ft/min
Maximum Velocity:	750 sfpm
Outside Diameter:	3/4 in
Temperature Rating:	-40 to 450 deg F
Width:	3/4 in
