C500 NER

Name: C500 NER
Brand: Appleton
SKU: C500 NER
Availability: InStock

C500 NER

Actual Product May Vary From Image

Product Details

Manufacturer:

Appleton

Manufacturer part number:

C-500

product.name:

C500 NER

CBT Inventory

149

Vendor Inventory

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Appleton®

Type

2-Screw

Description

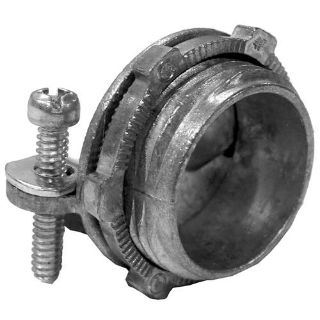

Appleton® NEER™ Service Entrance Cable Connector, 2-Screw, 3/8 in Knockout, 14/2 to 12/2 AWG Conductor, For Use With: 14 to 2/12 to 2 AWG Non-Metallic Sheathed Cable, Die Cast Zinc, 0.91 in Dia x 0.81 in W Dimensions, Appleton® NEER™ Service Entrance Cable Connector ADDITIONAL DETAILS

Application

For open throat type for nonmetallic sheathed cable

Standards

RoHS Compliant | UL 514B | CSA C22.2 No. 18 | Federal Specification W-F-406D

Features

Male hub threads NPS
Furnished with locknut

Includes

Locknut and Clamp

Specifications

Conductor Size:	14/2 to 12/2 AWG
Country of Origin:	IN
Dimensions:	0.91 in Dia x 0.81 in W
Knockout Size:	3/8 in
Material:	Die Cast Zinc
Suitable For Use With:	14 to 2/12 to 2 AWG Non-Metallic Sheathed Cable
