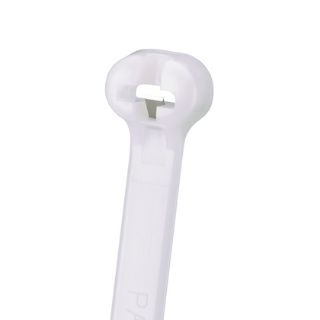

BT1.5I-M PAN

Product Details

Manufacturer part number:
BT1.5I-M
product.name:
BT1.5I-M PAN
CBT Inventory
1,000
Vendor Inventory
Loading...
Availability:
Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
Price on Request
This product has a minimum quantity of 5000

Description

Brand Name

Panduit®

Type

AH-2 Intermediate Plenum Rated

Description

The 2-piece design incorporates a stainless steel locking barb which provides infinite adjustability through entire bundle range. High loop tensile strength exceeds industry standards and the patented low thread force design reduces operator fatigue and improves productivity. This comprehensive product line offers several styles, materials, and colors for a broad range of applications that require high strength and superior performance.
Panduit® Dome-Top® Barb-Ty® Cable Tie, AH-2 Intermediate Plenum Rated, Series: BT, 6.1 mm Length, 6.3 mm Width, 1 mm Thickness, 38 mm Diameter Bundle, Lock Mechanism: Locking, 178 N Tensile Strength, -76 to 185 deg F, Nylon 6.6, Natural

Application

General Purpose and Indoor Applications

Standards

ARRA Compliant | Buy American Act Compliant | CE Certified | CSA C22.2 File No. 62275/11130200 | CSA Certified | MS3367-5-9 Military Standard | NRC 10CFR50 | QPL-AS23190 | RoHS Compliant | UL 62275 File No. E56854

Features

  • Dome-Top® head features smooth, round edges easy for installers to handle
  • Stainless steel locking barb provides consistent performance, reliability and infinite adjustability through entire bundle range
  • High tensile strength exceeds industry and aerospace standards SAE MS23190A
  • Low thread force reduces installer fatigue, increases productivity
  • Ribbed and stippled strap body prevents axial and lateral movement
  • Exclusively designed finger grip assures positive grip during threading of tie
  • Curved tip orients tip toward head for faster initial threading to speed installation, easy to pick up from flat surfaces

Specifications

Bundle Diameter:1-1/2 in
Color:Natural
Country of Origin:CR
Length:6.1 mm
Lock Mechanism:Locking
Material:Nylon 6.6
Series:BT Series
Temperature Rating:-76 to 185 deg F
Tensile Strength:178 N
Thickness:0.04 in
Width:1/4 in
