BSV18X-LY PAN

Name: BSV18X-LY PAN
SKU: BSV18X-LY PAN
Availability: OutOfStock

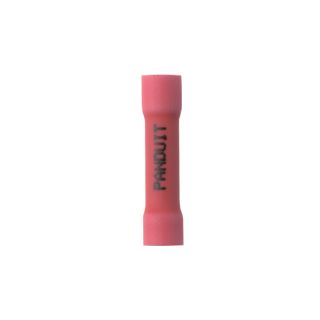

Actual Product May Vary From Image

Product Details

Manufacturer part number:

BSV18X-LY

product.name:

BSV18X-LY PAN

CBT Inventory

Vendor Inventory

Availability:

Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Panduit®

Type

Expanded Loose Piece

Description

Panduit® Pan-Term® splices are designed and manufactured for fast assembly and long reliable performance. as the demand for splices increases, it becomes essential to provide a complete system for termination products. we provide an extensive line of tooling designed specifically to provide optimum performance when used as a system for terminating.

Panduit® Pan-Term® Butt Splice, Expanded Loose Piece, Series: BSV, Solid/Stranded Conductor, 22 to 18 AWG Conductor, 1.03 in Length, Brazed Seam/Expanded Barrel, 600 VAC, Specifications: 5/16 in L Wire Strip, 0.17 in Dia Maximum Vinyl Insulation, 221 deg F, Copper/Vinyl, Red, Tin Plated

Application

For limited space panel applications

Standards

Features

Expanded wire entry designed to accommodate wire with a larger insulation thickness
Designed to splice two solid or stranded wires together to repair or lengthen wires
Internal wire stop assures proper length of insertion into terminal barrel
Butted configuration provides low profile for limited space applications
Brazed seam protects terminal barrel from splitting during the crimp process

Specifications

Barrel Type:	Brazed Seam/Expanded
Color:	Red
Conductor Size:	22 to 18 AWG
Conductor Type:	Solid/Stranded
Country of Origin:	MX
Finish:	TiN Coated
Length:	1.03 in
Material:	Copper
Series:	BSV
Specifications:	5/16 in L Wire Strip, 0.17 in Dia Maximum Vinyl Insulation
Temperature Rating:	221 deg F
Voltage Rating:	600 VAC
