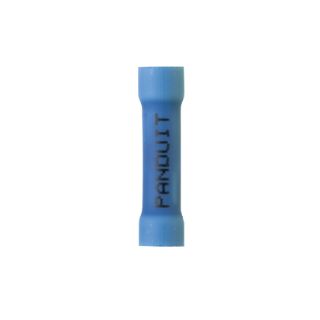

Actual Product May Vary From Image

BSV14X-L PAN

Name: BSV14X-L PAN
SKU: BSV14X-L PAN
Availability: OutOfStock

Panduit® Pan-Term™ BSV14X-L Type BSV Loose Piece Butt Splice, 16 to 14 AWG Conductor, 1.04 in L, Brazed Seam/Expanded/Funnel Barrel, Copper, Blue

Manufacturer part number: BSV14X-L

Availability: Expected Leadtime 14 days

Estimated dates are contingent upon manufacturer stock.

CBT - CINCINNATI	CBT - SPRINGBORO	CBT - SIDNEY
0	0	0
CBT - LEXINGTON	CBT - LOUISVILLE
0	0
Loading...

Price on Request

This product has a minimum quantity of 50

Qty:

Product Details

Brand Name

Panduit®

Type

Expanded Loose Piece

Description

Panduit® Pan-Term™ Butt Splice, Type BSV Loose Piece, Solid/Stranded Copper Conductor, 16 to 14 AWG Conductor, 1.04 in Length, Brazed Seam/Expanded/Funnel Barrel, 600 VAC, 5/16 in L Wire Strip, 0.21 in Dia Maximum Vinyl Insulation, 221 deg F, Copper, Blue, TiN Coated

Application

For limited space panel applications

Standards

Features

Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
Designed to splice two solid or stranded wires together to repair or lengthen wires
Butted configuration provides low profile for limited space applications
Brazed seam protects terminal barrel from splitting during the crimp process
Internal wire stop assures proper length of insertion into terminal barrel
Premium grade nylon insulation available for applications requiring a tighter grip around the wire insulation for maximum strain relief

Specifications

Barrel Type:	Brazed Seam/Expanded
Color:	Blue
Conductor Size:	16 to 14 AWG
Conductor Type:	Solid/Stranded
Country of Origin:	MX
Finish:	TiN Coated
Length:	1.04 in
Material:	Copper
Series:	BSV
Specifications:	5/16 in L Wire Strip, 0.2 in Dia Maximum Vinyl Insulation
Temperature Rating:	221 deg F
Voltage Rating:	600 VAC
