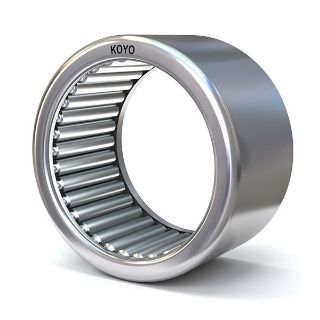

Actual Product May Vary From Image

BH-1016 KOY

Name: BH-1016 KOY
Brand: Koyo Bearings
SKU: BH-1016 KOY
Availability: InStock

Koyo BH-1016 Inch Series Heavy Duty Open Ends Uncaged Drawn Cup Needle Roller Bearing, 5/8 in Dia Bore, 7/8 in OD, 1 Row, 1 in W, 5890 lb Dynamic/10390 lb Static Load

Manufacturer: Koyo Bearings

Manufacturer part number: BH-1016

Availability: 100 in stock

Estimated dates are contingent upon manufacturer stock.

CBT - CINCINNATI	CBT - SPRINGBORO	CBT - SIDNEY
100	0	0
CBT - LEXINGTON	CBT - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Koyo

Type

Heavy Duty Open Ends Uncaged

Description

Drawn Cup Needle Roller Bearings supports radial loads and reduce friction between rotating components, with a drawn outer shell serving as a raceway for the rollers. The small cross section of the drawn cup bearing provides high load-carrying capability with minimum required space. Drawn cup bearing are easily installed with a press fit in the housing.

Koyo Drawn Cup Needle Roller Bearing, Heavy Duty Open Ends Uncaged Drawn Cup, Series: BH Inch Series, 5/8 in Bore, 7/8 in OD, 1 Row, 1 in Width, Open Closure, 5890 lb Dynamic/10390 lb Static Load, Steel Bearing, 4200 rpm Grease/6500 rpm Oil Maximum, -30 to 110 deg C

Application

Transmissions, Transfer Cases, Engines, Valves Trains, Steering, Barking Systems, Axle Supports, Outboard Engines, Power Tools, Copiers, Fax Machines, Paper-Moving Equipment and Appliances

Standards

ABEC1 | ASTM A1014 | ANSI/ABMA 18.2

Features

Full complement bearings handle high radial load carrying capability
Best used to provide maximum radial load capacity (full complement of rollers, no cage) for thin cross section applications
A hardened and machined shaft or an "IR" inner ring is required for optimal performance
A press fit into the housing is required

Specifications

Bearing Material:	Steel
Bore Diameter:	5/8 in
Closure Type:	Open
Load Capacity:	5890 lb Dynamic/10390 lb Static
Maximum Speed:	4200 rpm Grease/6500 rpm Oil
Number of Rows:	1
Outside Diameter:	7/8 in
Series:	BH Inch Series
Temperature Rating:	-30 to 110 deg C
Width:	1 in
