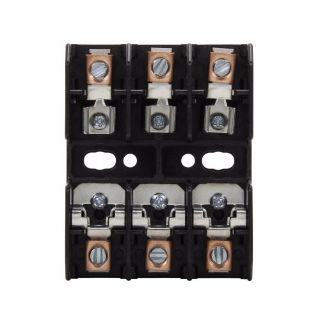

BC6033B BSF

Name: BC6033B BSF
Brand: Bussmann
SKU: BC6033B BSF
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Bussmann

Manufacturer part number:

BC6033B

product.name:

BC6033B BSF

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 7 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Bussmann

Description

EATON Bussmann business has developed a new line of modular ferrule fuse blocks for class CC, supplemental 13/32 in x 1- 1 /2 in (10 x 38 mm) fuse, class H(K), class J, and class R fuses. The new fuse blocks are fully modular with a snap together design for tool less assembly of multiple-pole blocks at point of use while reducing inventory and assembly time. Each block has provisions for DIN rail or panel mounting that permit the same block to be used for multiple applications. The new blocks also feature optional covers that enhance electrical safety with IP20 finger safe ratings for the full wire size range of each block. safety is further improved with an enhanced lockout/tag out feature, compatible with a broad array of lock designs. Covers are available with open circuit indication to speed troubleshooting and have provisions for an optional snap-in marker label for easy circuit identification.

Bussmann Fuse Block, Series: BC Series, 600 VAC/VDC, 1/10 to 30 A, 3 Pole, Class: CC, Box Lug Connection, 14 to 6 AWG Wire, DIN Rail Mounting, For Use With: LP-CC/KTK-R/FNQ-R Series Fuse, Thermoplastic/Bright Tin Plated Bronze Clip, Black, 3 in L x 2.375 in W x 1.21 in H Dimensions

Standards

Specifications

Amperage Rating:	1/10 to 30 A
Class:	CC
Color:	Black
Connection Type:	Box Lug
Country of Origin:	MX
Dimensions:	3 in L x 2.375 in W x 1.21 in H
Material:	Thermoplastic/Bright Tin Plated Bronze Clip
Mounting Type:	DIN Rail
Number of Poles:	3
Series:	BC Series
Suitable For Use With:	LP-CC/KTK-R/FNQ-R Series Fuse
Voltage Rating:	600 VAC/VDC
Wire Size:	14 to 6 AWG
