B180PC GAT

Name: B180PC GAT
Brand: Gates
SKU: B180PC GAT
Availability: OutOfStock

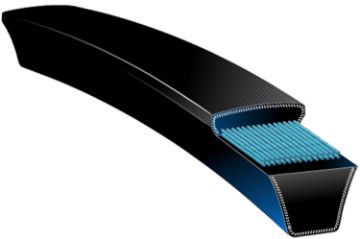

Actual Product May Vary From Image

Product Details

Manufacturer:

Gates

Manufacturer part number:

B180PC

product.name:

B180PC GAT

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Gates

Alternate Supplier #

90037180

Description

The conveyor turn is a demanding application in which V-belts face varying degrees of transverse bending. The Gates Power Curve® belt was specifically engineered to handle the bending and twisting of this demanding application.

Features

The Flex-Weave® cover is constructed for longer cover life, providing extended protection to the core of the belt from oil, dirt and heat. Unique under cord construction allows greater than four times the flexibility of Gates standard B section belt.

Specifications

Angle:	40
Belt Back Side:	Smooth
Belt Inside:	Smooth
Belt/Slab:	Belt
Color:	Black
Construcao:	Banded
Cord Material:	Polyester
Country of Origin:	MX
Effective Length (in):	182.9
Effective Length (mm):	4646
GC Base Product:	Power Curve® Belts
Harmonized Tariff Code:	4010.39.1000
Material:	SBR
Max Temp (°C):	+60
Max Temp (F):	+140
Min Temp (°C):	-34
Min Temp (F):	-30
Number of Ribs/Strands:	1
OC (in):	183.1
OC (mm):	4651
Proposition 65:	NO
Secao:	B
Sided:	Single Sided
Static Conductive:	No
Thickness (in):	0.438
Thickness (mm):	11
Top Width (in):	0.688
Top Width (mm):	17
Unitset (V80):	No
