ATQ5 FER

Name: ATQ5 FER
Brand: Mersen
SKU: ATQ5 FER
Availability: InStock

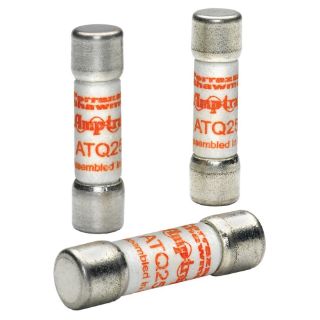

Actual Product May Vary From Image

Product Details

Manufacturer:

Mersen

Manufacturer part number:

ATQ5

product.name:

ATQ5 FER

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 15 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Mersen

Type

Low Voltage

Alternate Supplier #

Grainger - 4ZCN1

Description

Amp-Trap® ATQ midget time delay fuses are rated a full 500 VAC with 42 A ratings from 1/10 to 30 A. They are an excellent choice for supplemental protection of circuits up to 30 A where the available short circuit current does not exceed 10,000 A. (Not for Branch Circuit Protection).

Mersen Amp-Trap® Time Delay Fuse, Low Voltage, Series: ATQ, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 5 A, 500 VAC, 10 kA Interrupt, Class: Midget, 53 s Response, Ferrule Terminal, Clip Mount, Cylindrical Body, Dual Element, Fiber, 13/32 in Dia x 1-1/2 in L Body Size

Application

For supplemental protection of lighting, solenoid, motor and transformer circuits applications

Standards

UL File No. E33925 | CSA C22.2 No.248.14 | RoHS Compliant

Features

Numerous ratings for a wide variety of applications up to 500 VAC
Time-delay (12 sec at 200% rating) for circuits with high inrush current
Tin-plated copper contact
Can be used with UltraSafe™ fuse holders

Specifications

Amperage Rating:	5 A
Body Size:	13/32 in Dia x 1-1/2 in L
Body Type:	Cylindrical
Class:	Midget
Country of Origin:	MX
Element:	Dual
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	10 kA
Material:	Fiber
Mounting Type:	Clip
Rejection/Non-Rejection:	Non-Rejection
Response Time:	53 s
Series:	ATQ
Terminal Type:	Ferrule
Voltage Rating:	500 VAC
