APPTB150A APN

Name: APPTB150A APN
Brand: Appleton
SKU: APPTB150A APN
Availability: OutOfStock

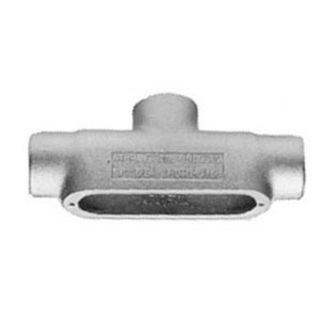

Actual Product May Vary From Image

Product Details

Manufacturer:

Appleton

Manufacturer part number:

TB150A

product.name:

APPTB150A APN

CBT Inventory

Vendor Inventory

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Appleton®

Type

Type TB

Description

Appleton® Form 85™ UNILETS™ Conduit Outlet Bodies, Covers and Gaskets are used to connect and change direction of conduit runs. In addition to making bends in a conduit system, they allow connections for branch runs. These conduit bodies serve as pulling fittings and permit access to conductors for splicing and maintenance.

Appleton® UNILETS™ Conduit Outlet Body, Type TB, 1-1/2 in Hub, 3 Hubs, 34.5 cu-in Capacity, Form 85 Form, NEMA FB-1 Enclosure, Tapered FNPT Connection, Surface Mounting, Pressure Cast Aluminum, Epoxy Powder Coated Finish, 8.56 in L x 2.5 in W Dimensions

Application

For Rigid Steel/Aluminum and IMC Conduit

Standards

UL 514A/514B/E2527 | C22.2 No. 18.3 | CSA 065183

Features

Roomy interiors more wiring space
Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
Form 85™ copper free aluminum UNILETS™ are lightweight, self oxidizing, self-renewing and offer a high corrosion resistance
Lightweight aluminum facilitates shipping, handling and installing
Sizes with flat back design ideal where fitting is mounted flat against surface
Internal volume and maximum wire capacity clearly marked on castings
Threaded style is raintight when used with casketed covers

Specifications

Capacity:	34.5 cu-in
Connection Type:	Tapered FNPT
Country of Origin:	MX
Dimensions:	8.56 in L x 2.5 in W
Enclosure:	NEMA FB-1
Finish:	Epoxy Powder Coated
Form:	Form 85
Hub Size:	1-1/2 in
Material:	Pressure Cast Aluminum
Mounting Type:	Surface
Number of Hubs:	3
