APPT39 APN

Name: APPT39 APN
Brand: Appleton
SKU: APPT39 APN
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Appleton

Manufacturer part number:

T39

product.name:

APPT39 APN

CBT Inventory

Vendor Inventory

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Appleton®

Type

Type T

Description

Appleton® FM9™ Aluminum Conduit Outlet Bodies Covers Gaskets are used to connect and change direction of conduit runs. In addition to making bends in a conduit system, they allow connections for branch runs. These conduit bodies serve as pulling fittings and permit access to conductors for splicing and maintenance.

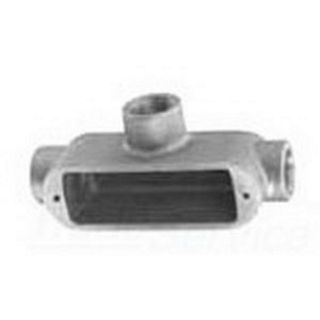

Appleton® UNILETS™ Conduit Outlet Body, Type T, 3 Hubs, 12.5 cu-in, 9, NEMA FB-1 Enclosure, Tapered FNPT, Copper Free Aluminum, Natural, 6.59 in L x 2.06 in H

Application

For Rigid Steel/Aluminum and IMC Conduit

Standards

UL 514A/514B/E2527 | C22.2 No. 18.3 | CSA 065183

Features

Roomy interiors - deep body cavity provides increased volume allowing higher wiring capacity
Smooth, rounded integral bushing in each hub protects conductor insulation
Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
Completely interchangeable with Crouse-Hinds Mark 9 bodies, gaskets and covers
Aluminum UNILETS™ produced from a high strength copper free aluminum alloy, for light weight and high corrosion resistance
FM9™ covers with integral gasket are approved for use in wet locations
Covers are domed for extra wiring space
Smooth hub bushings and cover openings protect conductor insulation
Smooth hub openings allow easy conduit joining
Stainless steel pan head cover screws secure cover to body and provide superior screwdriver seating and torque
Hub size, body style, compliance data, maximum wire number/size and cubic capacity molded into body
Seven body style
Cover screws are captive to prevent loss in sizes

Specifications

Capacity:	12.5 cu-in
Connection Type:	Tapered FNPT
Country of Origin:	MX
Dimensions:	6.59 in L x 2.06 in H
Enclosure:	NEMA FB-1
Finish:	Natural
Form:	9
Material:	Copper Free Aluminum
Number of Hubs:	3
