APPFSC175A APN

Name: APPFSC175A APN
Brand: Appleton
SKU: APPFSC175A APN
Availability: InStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Appleton

Manufacturer part number:

FSC175A

product.name:

APPFSC175A APN

CBT Inventory

Vendor Inventory

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Appleton®

Type

Type FSC Heavy Duty Shallow

Description

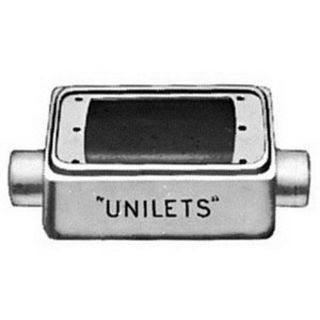

Appleton® UNILETS™ Device Box, Type FSC Heavy Duty Shallow, 2 Outlets, 1 Gangs, 2 Knockouts, 3/4 in Hub, Tapered Threaded Hub, Knockout Cable Entry Size, NEMA FB-1, 25 cu-in, Aluminum, Epoxy Powder Coated, 4.56 in H x 2.81 in W x 2 in D

Application

For use with threaded rigid/IMC conduit

Standards

UL 514A E2527 | CSA C22.2 No. 18.1, 001472

Features

Corrosion-resistant ideal for indoor and outdoor installations
Weatherproof, raintight and dust tight when used with cast gasketed covers
FS and FD boxes take standard flush wiring devices
FD boxes take devices exceeding 1.63/41.4 mm in depth under fastening ears
Malleable iron for high tensile strength and ductility provides greater resistance to impact and shock
Both malleable iron and aluminum boxes have ridge top construction for positive cover/gasket/box fit
Accurately tapped, tapered threads for tight, rigid joints and ground continuity
Complete selection of covers, receptacles, plugs, gaskets and accessories
Covers have captive stainless steel screws to speed installation, prevents loss of screws
Smooth, rounded integral bushing in each hub protects conductor insulation
Accommodate wiring devices such as switches and receptacles
Provide excellent service in areas where boxes are subject to rough usage
Serve as pull boxes for conductors
Permit access to conductors for maintenance
Provide openings for making splices
Allow connections for branch conduit runs
Blank bodies for special conduit entrance arrangements
Without knockouts

Includes

Internal Ground Screw and Mounting Lug

Specifications

Cable Entry Size:	Knockout
Capacity:	25 cu-in
Country of Origin:	MX
Dimensions:	4.56 in H x 2.81 in W x 2 in D
Enclosure Type:	NEMA FB-1
Finish:	Epoxy Powder Coated
Hub Size:	3/4 in
Hub Style:	Tapered Threaded
Material:	Aluminum
Number of Gangs:	1
Number of Knockouts:	2
Number of Outlets:	2
