AGC-20 BSF

Name: AGC-20 BSF
Brand: Bussmann
SKU: AGC-20 BSF
Availability: OutOfStock

AGC-20 BSF

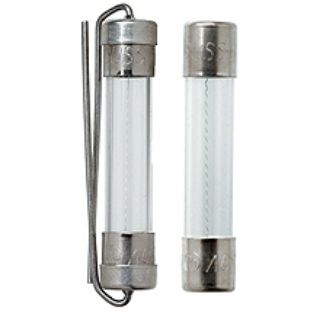

Actual Product May Vary From Image

Product Details

Manufacturer:

Bussmann

Manufacturer part number:

AGC-20

product.name:

AGC-20 BSF

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 14 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Bussmann

Type

Small Dimension

Description

Bussmann Fast Acting Fuse, Small Dimension, Series: AGC, Non-Indicating, Non-Rejection, 20 A, 32 VAC, 1 kA Interrupt, 60 min, 120 s Response, Ferrule Terminal, Clip/Holder Mounting, Cylindrical Body, Single Element, Glass, 1/4 in Dia x 1-1/4 in L Body

Application

Electronic Circuit Applications

Standards

UL 248-14 | JDYX E19180 | CSA Class 1422-01 53787 | CSA Certified

Features

1 kA at 32 VAC interrupt rating
60 min maximum at 135%, 120 s maximum at 200%

Specifications

Amperage Rating:	20 A
Body Size:	1/4 in Dia x 1-1/4 in L
Body Type:	Cylindrical
Country of Origin:	TW
Element:	Single
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	1 kA
Material:	Glass
Mounting Type:	Clip/Holder
Rejection/Non-Rejection:	Non-Rejection
Response Time:	60 min, 120 s
Series:	AGC
Terminal Type:	Ferrule
Voltage Rating:	32 VAC
