AGC-1-1/2-R BSF

Name: AGC-1-1/2-R BSF
Brand: Bussmann
SKU: AGC-1-1/2-R BSF
Availability: OutOfStock

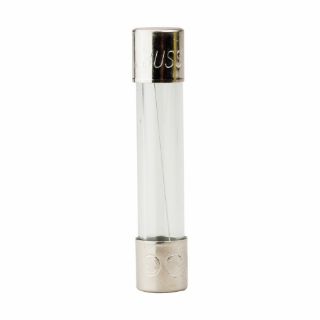

Actual Product May Vary From Image

Product Details

Manufacturer:

Bussmann

Manufacturer part number:

AGC-1-1/2-R

product.name:

AGC-1-1/2-R BSF

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 21 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Bussmann

Type

Small Dimension

Alternate Supplier #

Grainger - 4XH41

Description

Fast-acting, glass tube 1/4" x 1-1/4" ferrule fuse designed to UL 248-14 for overcurrent protection of electronic circuits. Install into a Bussmann Series fuse holder, block, or fuse clip, or purchase with available axial leads for thru-hole installation. Eaton's AGC fast-acting, glass tube 1/4" x 1-1/4" ferrule fuses are designed to UL 248-14 for overcurrent protection of electronic circuits. Order in cartridge fuse format and install into a Bussmann Series fuse holder, block, or fuse clip, or purchase with available axial leads for thru-hole installation.

Bussmann Fast Acting Fuse, Small Dimension, Series: AGC, Non-Indicating, Non-Rejection, 1-1/2 A, 250 VAC, 100 A, 10 kA Interrupt, 60 min, 120 s Response, Ferrule Terminal, Holder Mounting, Cylindrical Body, Single Element, Glass, 1/4 in Dia x 1-1/4 in L Body

Application

Electronic Circuit Applications

Standards

RoHS 2002/95/EC | UL 248-14, Guide JDYX, File No. E19180 | CSA Class 1422-01, File No. 053787 | CE Certified

Features

Fast acting for maximum component protection
Wide amp/volt ratings allow versatility of protecting electronic circuits
100 A at 250 VAC, 10 kA at 125 VAC interrupt rating
60 min maximum at 135%, 120 sec maximum at 200% response time

Specifications

Amperage Rating:	1-1/2 A
Body Size:	1/4 in Dia x 1-1/4 in L
Body Type:	Cylindrical
Country of Origin:	TW
Element:	Single
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	100 A
Material:	Glass
Mounting Type:	Clip/Holder
Rejection/Non-Rejection:	Non-Rejection
Response Time:	60 min, 120 s
Series:	AGC
Terminal Type:	Ferrule
Voltage Rating:	250 VAC
