ABC-8 BSF

Name: ABC-8 BSF
Brand: Bussmann
SKU: ABC-8 BSF
Availability: OutOfStock

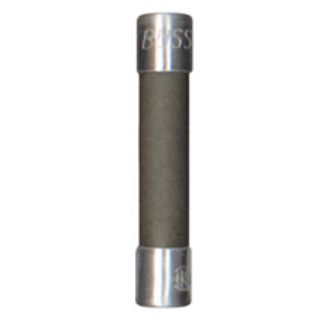

Actual Product May Vary From Image

Product Details

Manufacturer:

Bussmann

Manufacturer part number:

ABC-8

product.name:

ABC-8 BSF

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 21 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Bussmann

Type

Electronic Small Dimension

Description

World leading supplier of fuses and fusible protection systems, Bussmann continues its 88-year history of blazing new trails of innovative technologies. Maker of the industry first truly global product line, each item is backed by an efficient worldwide network of distribution, customer service and technical support. Bussmann products include the most extensive circuit protection solutions approved for use in a variety of major standards: UL, CSA, IEC. Not to mention both European (DIN, British Standard) and North American styled fuses for a wide range of applications: industrial motor protection, power conversion, medium voltage, power distribution, telecommunications network equipment, electronics, and automotive.

Bussmann Fast Acting Fuse, Electronic Small Dimension, Series: ABC, Non-Indicating, 8 A, 250 VAC, 125 VDC, 200 A, 10 kA Interrupt, 4 hr, 60 min, 120 s Response, Ferrule Terminal, Holder Mounting, Cylindrical Body, Single Element, Ceramic, 1/4 in Dia x 1-1/4 in L Body

Application

Electronic Circuit Applications

Standards

UL 248-14 Guide JDYX | CSA Certification Class 1422-01 | CE Certified | CSA Certified

Features

Ceramic tube, nickel plated brass endcap construction
Optional leaded version available
Size 3AB
4 hr minimum at 160 min maximum at 1.35 120 s maximum at 200% response time
200 A at 250 VAC, 10 kA at 125 VAC/VDC interrupt rating
4 hr minimum at 100%, 60 min maximum at 135%, 120 s maximum at 200%

Specifications

Amperage Rating:	8 A
Body Size:	1/4 in Dia x 1-1/4 in L
Body Type:	Cylindrical
Country of Origin:	CN
Element:	Single
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	200 A, 10 kA
Material:	Ceramic
Mounting Type:	Holder
Response Time:	4 hr, 60 min, 120 s
Series:	ABC
Terminal Type:	Ferrule
Voltage Rating:	250 VAC, 125 VDC
