ABC-1/2 BSF

Name: ABC-1/2 BSF
Brand: Bussmann
SKU: ABC-1/2 BSF
Availability: OutOfStock

ABC-1/2 BSF

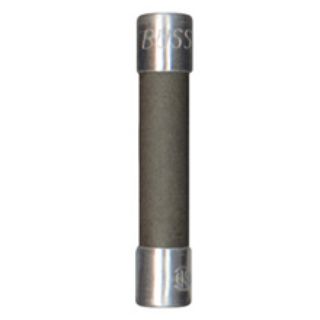

Actual Product May Vary From Image

Product Details

Manufacturer:

Bussmann

Manufacturer part number:

ABC-1/2

product.name:

ABC-1/2 BSF

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 14 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Bussmann

Type

Electronic Small Dimension

Description

Bussmann Fast Acting Fuse, Electronic Small Dimension, Series: ABC, Non-Indicating, 1/2 A, 250 VAC, 125 VDC, 35 A, 10 kA Interrupt, 4 hr, 60 min, 120 s Response, Ferrule Terminal, Holder Mounting, Cylindrical Body, Ceramic, 1/4 in Dia x 1-1/4 in L Body

Application

Electronic Circuit Applications

Standards

Features

Ceramic body allows for higher amp/volt rating combinations
35 A at 250 VAC, 10 kA at 125 VAC/VDC interrupt rating
4 hr minimum at 100%, 60 min maximum at 135%, 120 s maximum at 200% response time

Specifications

Amperage Rating:	0.5 A
Body Size:	1/4 in Dia x 1-1/4 in L
Body Type:	Cylindrical
Country of Origin:	TW
Element:	Single
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	35 A, 10 kA
Material:	Ceramic
Mounting Type:	Clip/Holder
Rejection/Non-Rejection:	Non-Rejection
Response Time:	4 hr, 60 min, 120 s
Series:	ABC
Terminal Type:	Ferrule
Voltage Rating:	250 VAC, 125 VDC
