Home / 945100 NEX

945100 NEX

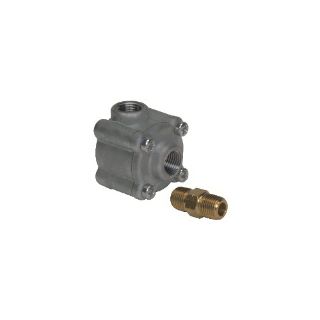

Picture of 945100 NEX
Actual Product May Vary From Image

Product Details

Manufacturer:
Nexen
Manufacturer part number:
945100
product.name:
945100 NEX
CBT Inventory
2
Vendor Inventory
Loading...
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Nexen®

Type

Quick Exhaust

Description

Nexen® Air Champ® Shuttle Valve, Quick Exhaust, For Use With: Clutches and Bakes, Specifications: 1/8 in NPT Port, 1/8 in Valve Orifice, In-Line Mount, 5 to 100 psi Operating Pressure, Polyurethane Valve Element, Die Cast Zinc, 1.2 in W x 1.1 in H Dimensions

Features

  • Quick exhaust valves improve response times by reducing the distance the exhaust air must travel
  • A 3 to 5 psi drop in line pressure causes the valve to exhaust the down stream pressure
  • Recommended when quicker exhausting reaction times are desired or the control valve is not close to device

Specifications

Dimensions:1.2 in W x 1.1 in H
Material:Die Cast Zinc
Specifications:1/8 in NPT Port, 1/8 in Valve Orifice, In-Line Mount, 5 to 100 psi Operating Pressure, Polyurethane Valve Element
Suitable For Use With:Clutches and Bakes
