9 X 155 PR GAT

Name: 9 X 155 PR GAT
Brand: Gates
SKU: 9 X 155 PR GAT
Availability: OutOfStock

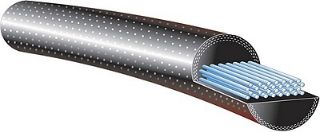

Actual Product May Vary From Image

Product Details

Manufacturer:

Gates

Manufacturer part number:

9 X 155 PR

product.name:

9 X 155 PR GAT

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Gates

Alternate Supplier #

88190020

Description

Power Round™ belts are designed for more demanding applications and are able to steadily maintain rotating parts in your power transmission systems with virtually no maintenance or retensioning.

Features

Flex-bonded cords are chemically forged to the belt body, providing equal load distribution and bending stress absorption without cord deterioration. Flex-Weave™ oil and heat resistant cover protects the belt core from the toughest environments. The Power Round variant is a double-layer cover for extended protection. Power Round variant also features an Alignment Stripe that runs the entire length of the belt to aid in eliminating belt twist during installation. Minimal stretch for minimum take-up requirements. No splice for added durability. Power Round and Round Endless belts are ideal for quarter-turn or twisted drives, serpentine drives, power turn and line shaft conveyors and commercial sewing machines. Meets ARPM/RMA IP-3-2 oil and heat resistant standards and IP-3-3 static conductivity requirements. REACH and RoHS 2 compliant.

Specifications

Belt Back Side:	Smooth
Belt Inside:	Smooth
Belt/Slab:	Belt
Color:	Black
Construcao:	Banded
Cord Material:	Polyester
Country of Origin:	MX
Effective Length (in):	155
Effective Length (mm):	3937
GC Base Product:	Power Round® Belts
Harmonized Tariff Code:	4010.12.5500
Material:	Polychloroprene (Neoprene)
Max Temp (°C):	82
Max Temp (F):	180
Min Temp (°C):	-30
Min Temp (F):	-22
OC (in):	158.54
OC (mm):	4027
Proposition 65:	NO
Secao:	ROUND
Static Conductive:	Yes
Thickness (in):	0.56
Thickness (mm):	14
Top Width (in):	0.563
Top Width (mm):	14
Unitset (V80):	No
