8S 1 1/4 MSG

Name: 8S 1 1/4 MSG
Brand: Martin Sprocket & Gear
SKU: 8S 1 1/4 MSG
Availability: InStock

8S 1 1/4 MSG

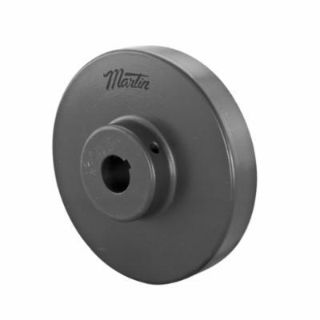

Actual Product May Vary From Image

Product Details

Manufacturer:

Martin Sprocket & Gear

Manufacturer part number:

8S 1 1/4

product.name:

8S 1 1/4 MSG

CBT Inventory

Vendor Inventory

Availability:

Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Martin

Type

Bored-to-Size Type S

Description

Martin Quadra-Flex® is a proven design which offers long life, torsional flexibility, ease of installation and withstands misalignment, shock and vibration. Available in sizes 3 to 16 in bored to size, QD bushed, spacer type and plain bore for custom requirements.

Martin Quadra-Flex® Coupling Flange, Bored-to-Size Type S, 08 Coupling, 1-1/4 in Bore Dia, 3-1/4 in Hub Dia, 3/4 in Hub Length, 1/4 x 1/8 in Keyway, 4500 rpm Maximum, 2.094 in Length Through Bore, 5/16-18 x 5/16 in Screw, Steel

Specifications

Bore Diameter:	1-1/4 in
Country of Origin:	US
Coupling Size:	08
Hub Diameter:	3-1/4 in
Hub Length:	3/4 in
Keyway Size:	1/4 x 1/8 in
Length Through Bore:	2.094 in
Material:	Steel
Maximum Speed:	4500 rpm
Screw Size:	5/16-18 x 5/16 in
