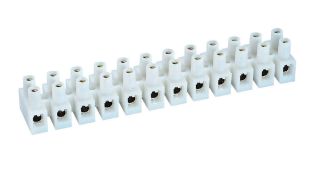

89-610 IDE

Name: 89-610 IDE
Brand: Ideal Industries
SKU: 89-610 IDE
Availability: InStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Ideal Industries

Manufacturer part number:

89-610

product.name:

89-610 IDE

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

IDEAL®

Alternate Supplier #

Grainger - 25A232

Description

Ideal® barrier strips are designed and manufactured to be rugged, reliable and easy to use. A thermoplastic base and corrosion-resistant screws and hardware provide extended service life.

IDEAL® Barrier Strip, 300/400 VAC, 20/30 A, 12 Terminals, 22 to 10 AWG, 22 to 18 AWG Wire, 0.394 in Center Spacing, 4.4 in-lb Torque, Recessed Screws/Tubular Contacts Connection, 221 deg F, Plastic, 4.626 in L x 0.795 in W x 0.394 in H Dimensions

Standards

CSA Certified | cULus Listed | RoHS Compliant | UL 94 V-2 Flammability Rated

Features

Modular 12 circuit design can be cut into sections or stacked end to end
Recessed screws and tubular contacts provide added safety and help prevent short circuits
Rugged nylon construction
Tubular contacts connect stripped, un-terminated solid or stranded wire directly to each contact
Integrated wire protectors prevent twisting and breakage of stranded wire during connection

Specifications

Amperage Rating:	20/30 A
Center Spacing:	0.394 in
Connection Type:	Recessed Screws/Tubular Contacts
Country of Origin:	TW
Dimensions:	4.626 in L x 0.795 in W x 0.394 in H
Material:	Plastic
Number of Terminals:	12
Temperature Rating:	221 deg F
Torque Rating:	4.4 in-lb
Voltage Rating:	300/400 VAC
Wire Size:	22 to 10 AWG, 22 to 18 AWG
