804001A09M100 WOO

Name: 804001A09M100 WOO
Brand: Molex/Woodhead
SKU: 804001A09M100 WOO
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Molex/Woodhead

Manufacturer part number:

804001A09M100

product.name:

804001A09M100 WOO

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 7 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Brad®

Type

Single End

Description

Micro-Change® connectors are designed to withstand harsh-industrial and weather environments with superior quality that assures very reliable connections for control elements in automated equipment. These high-quality connectors allow fast and simple replacement of sensors, encoders, switches and other input and output devices in industrial machinery. Available in 2 through 5, 8 and 12-pole IEC compliant configurations, single and dual-keyway designs, with straight and 90 deg plugs, the Micro-Change® comprehensive offering provides a complete connectivity solution. With the introduction of harsh duty receptacles, Molex expands the applicability of M12 connectors to more demanding environments, Brad® Micro-Change® M12 harsh duty receptacles offer a sealed connection with superior EMI/RFI shielding in high-vibration systems, which makes them ideal for petrochemical and commercial-vehicle class 2 applications.

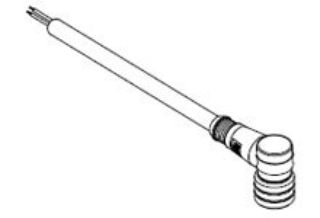

Brad® Micro-Change® Molex® Cordset, Single Ended, Series: 120065, 90 deg Female x Straight Pigtail Connector, M12 Connector, PUR Connector, 22 AWG Jacketed/E152210 Cable, 10 m Cable Length, PVC Cable, 4 Pole, Single Keyway, 250 VAC/VDC, 4 A, Brown/White/Blue/Black Wire Pin, IEC 61076-2-101 IEC, NEMA 6P NEMA Rating

Application

Commercial Construction and Mining Equipment Sensors, Machine Lighting, Standard Industrial Lighting, Defense C4ISR, Ground Vehicle Networks, Shelters, Automated Assembly Equipment, Conveyor Systems, Material Handling, Packaging Equipment, Pick and Place Robots

Standards

CE Marked | CSA File No. LR6837 | UL File No. E152210

Features

M12 design meets IEC specifications
Ideal for class 2 power and network circuit applications
Provides a longer-lasting, high performance electrical contact
Prevents the coupler from loosening even under extreme vibration
Water-tight panel-mount design
22 AWG yellow cable
Copper alloy contact, nickel plated brass coupling nut, fluoro-elastomer O-ring, gold over nickel plating mating
0.21 in cable diameter
-20 to 105 deg C operating temperature

Specifications

Amperage Rating:	4 A
Cable Length:	10 m
Cable Material:	PVC
Cable Type:	22 AWG Jacketed/E152210
Connector Material:	Polyurethane
Connector Size:	M12
Connector Type:	90 deg Female x Pigtail
Country of Origin:	MX
IEC Rating:	IEC 61076-2-101
Keyway:	Single
NEMA Rating:	NEMA 6P
Number of Poles:	4
Series:	120065
Voltage Rating:	250 VAC/VDC
Wire Pin Colors:	Black/Blue/Brown/White
