804000A09M050 WOO

Name: 804000A09M050 WOO
Brand: Molex/Woodhead
SKU: 804000A09M050 WOO
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Molex/Woodhead

Manufacturer part number:

804000A09M050

product.name:

804000A09M050 WOO

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 7 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Brad®

Type

Single Ended

Description

Micro-Change® (M12) industry standard connectors are rugged, compact, sealed connectors used for sensor/actuator connectivity in industrial control applications. Micro-Change® (M12) connectors are designed to withstand harsh-industrial and weather environments with superior quality that assures very reliable connections for control elements in automated equipment. These high-quality connectors allow fast and simple replacement of sensors, encoders, switches and other input and output devices in industrial machinery.

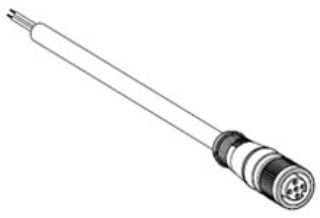

Brad® Micro-Change® Molex® Cordset, Single Ended, Series: 120065, Straight Female x Pigtail Connector, M12 Connector, 22 AWG Cable, 5 m Cable Length, PVC Cable, 4 Pole, Single Keyway, 250 VAC/VDC, 4 A

Application

For class 2 power and network circuit applications

Standards

CSA File No. LR6837 | UL File No. E152210 | UL 2661 | UL File No. E258922

Features

This sensor cordset is designed to offer a quick alternative to hardwiring sensors and switches
M12 design meets IEC specifications
Industry standard interface compatible with a wide array of sensors and switches
Provides a longer lasting, high performance electrical contact
Prevents the coupler from loosening even under extreme vibration
Harsh duty receptacle

Specifications

Amperage Rating:	4 A
Cable Length:	5 m
Cable Material:	PVC
Cable Type:	22 AWG
Connector Size:	M12
Connector Type:	Straight Female x Pigtail
Country of Origin:	MX
Keyway:	Single
Number of Poles:	4
Series:	120065
Voltage Rating:	250 VAC/VDC
