7R6A06A19A120 WOO

Name: 7R6A06A19A120 WOO
Brand: Molex/Woodhead
SKU: 7R6A06A19A120 WOO
Availability: InStock

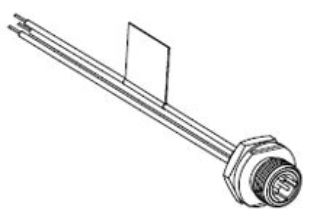

Actual Product May Vary From Image

Product Details

Manufacturer:

Molex/Woodhead

Manufacturer part number:

7R6A06A19A120

product.name:

7R6A06A19A120 WOO

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 12 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Brad®

Type

6-Pole A-Size Dual Keyway Single Ended External Thread

Description

Micro-Change® connectors are designed to withstand harsh-industrial and weather environments with superior quality that assures very reliable connections for control elements in automated equipment. These high-quality connectors allow fast and simple replacement of sensors, encoders, switches and other input and output devices in industrial machinery. Available in 2 through 5, 8 and 12-pole IEC compliant configurations, single and dual-keyway designs, with straight and 90 deg plugs, the Micro-Change® comprehensive offering provides a complete connectivity solution. With the introduction of harsh duty receptacles, Molex expands the applicability of M12 connectors to more demanding environments, Brad® Micro-Change® M12 harsh duty receptacles offer a sealed connection with superior EMI/RFI shielding in high-vibration systems, which makes them ideal for petrochemical and commercial-vehicle class 2 applications.

Brad® Micro-Change® Receptacle, 6-Pole A-Size Dual Keyway Single Ended External Thread, Series: 120074, 250 VAC/VDC, 4 A, Straight Male Slot End, NEMA 6, Industrial Grade, Anodized Aluminum, Gray, 12 in L Dimensions

Application

Construction and Mining Equipment Sensors, C4ISR, Ground Vehicle Networks, Shelters, Automated Assembly Equipment, Conveyor Systems, Material Handling, Packaging Equipment, Pick and Place Robots, Machine Lighting and Standard Industrial Lighting

Standards

CE Certified | CSA File No. LR6837 | IP67 | UL File No. E152210

Features

6 poles
22 AWG PVC wire
1/4-18 NPT mounting thread
1/2-20 UNF-dual keyway
Straight orientation
Gray anodized aluminum shell
External thread coupling
Front panel mount
-20 to 80 deg C operating

Specifications

Amperage Rating:	4 A
Color:	Gray
Country of Origin:	MX
Dimensions:	0.305 m L
Grade:	Industrial
Material:	Aluminum
NEMA Rating:	NEMA 6
Series:	120074
Slot End Style:	Straight Male
Voltage Rating:	250 VAC/VDC
