7610DLGTNTG18 RBC

Name: 7610DLGTNTG18 RBC
Brand: Roller Bearing Corporation
SKU: 7610DLGTNTG18 RBC
Availability: InStock

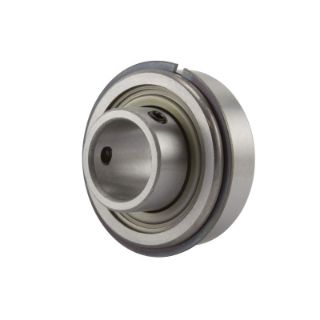

Actual Product May Vary From Image

Product Details

Manufacturer:

Roller Bearing Corporation

Manufacturer part number:

7610DLGTNTG18

product.name:

7610DLGTNTG18 RBC

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Nice®

Type

Heavy Duty Non-Fill Slot

Description

The 7600® Series bearings are single row retainer type radial bearings similar in construction to the 1600® Series bearings. They incorporate a highly efficient single lip contact seal with metal guard. The inner and outer rings are turned from chrome steel and after careful heat treatment the through hardened rings are accurately ground to close tolerances. The inner ring is extended and contains set screws whereas the 7500® Series bearing does not. The 7600® Series bearings are recommended for applications requiring the accuracy of rotation and quiet performance of close limit precision grade bearings, and where a superior seal is required to retain lubricant and keep the bearing free from dust and dirt.

Nice® Precision Deep Groove Ball Bearing, Heavy Duty Non-Fill Slot, Series: 7600®, 5/8 in Bore, 1-3/4 in OD, 1 Rows, 1.092 in Width, Double Seal Closure, 1025 lb Load, 52100 Steel Bearing, Nylon Cage, 5000 rpm Maximum, 300 deg F, Chrome Steel

Application

Textile Machinery, Agricultural Machinery, Pulleys, Idlers and Material Handling Equipment

Standards

ABEC-1 | ASPR | CAS | DFAR | FAR Standards

Features

Precision ground on all contact surfaces, similar to the 1600® series bearings
Highly efficient single lip contact seal
Precision ground on all surfaces and ball grooves for smooth rotation and easy installation
Pregreased with metered Shell Alvania #2 grease
Highly effective single lip contact seal with trash guard
Recommended for applications where accurate, quiet performance and superior sealing are required
2595 lb dynamic/1025 lb static

Includes

Snap Ring with Groove

Specifications

Bearing Material:	52100 Steel
Bore Diameter:	5/8 in
Cage Material:	Nylon
Closure Type:	Double Seal
Country of Origin:	US
Finish:	Chrome Steel
Load Capacity:	1025 lb
Maximum Speed:	5000 rpm
Number of Rows:	1
Outside Diameter:	1-3/4 in
Series:	7600®
Temperature Rating:	300 deg F
Width:	1.092 in
