.7536OS1BJPW56J-S WEG

Name: .7536OS1BJPW56J-S WEG
Brand: WEG
SKU: .7536OS1BJPW56J-S WEG
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

WEG

Manufacturer part number:

.7536OS1BJPW56J-S

product.name:

.7536OS1BJPW56J-S WEG

CBT Inventory

Vendor Inventory

Availability:

Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

WEG

Alternate Supplier #

Applied Industrial Technologies - 113856117
Motion Industries - 07327597

Description

These versatile motors have the torque and durability for the toughest commercial applications, yet are also economical choices for residential applications. Available with or without base and in "J" and "C" configurations.

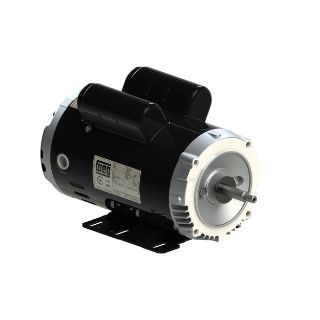

WEG AC Motor, Jet Pump (JM/JP) Motors Application, 0.75 hp, 115/208/230 VAC, 4.8 A, 60 Hz Frequency, 1 ph ph, 3600 rpm Speed, Open Drip-Proof Enclosure, W56J Frame, 1.5 Service Factor, Footed Mounting, Insulation Class: Class B, Rolled Steel, 11.154 in L Dimensions

Application

Jet Pump Applications

Features

Sealed ball bearings (drive end)
NEMA service factor
Automatic reset thermal overload protection
Stainless steel shaft end

Specifications

Amperage Rating:	4.8 A
Application Type:	Jet Pump (JM/JP) Motors
Dimensions:	11.154 in L
Enclosure Type:	Open Drip-Proof
Frame:	W56J
Frequency Rating:	60 Hz
Horsepower:	0.75 hp
Insulation Class:	Class B
Material:	Rolled Steel
Mounting Type:	Footed
Phase:	1 ph
Service Factor:	1.5
Speed:	3600 rpm
Voltage Rating:	115/208/230 VAC
