.7518EP3ESS56CFL WEG

Name: .7518EP3ESS56CFL WEG
Brand: WEG
SKU: .7518EP3ESS56CFL WEG
Availability: OutOfStock

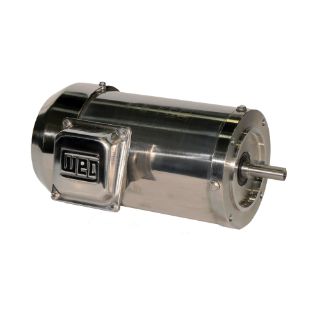

Actual Product May Vary From Image

Product Details

Manufacturer:

WEG

Manufacturer part number:

.7518EP3ESS56CFL

product.name:

.7518EP3ESS56CFL WEG

CBT Inventory

Vendor Inventory

Availability:

Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

WEG

Alternate Supplier #

Applied Industrial Technologies - 101812658
Motion Industries - 03641493

Description

WEG Shark™ AC Motor, General Purpose AC Motors Application, Washdown Duty Motors Special Features, 0.75 hp, 230/460 VAC, 1.06 A, 60 Hz Frequency, 3 ph ph, 1800 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 56C Frame, 0.625 in Dia x 2.06 in L Shaft, 1.15 Service Factor, Ball Bearing, C-Face Footless Mounting, 40 deg C, Insulation Class: Class F, Stainless Steel, 11-1/4 in L Dimensions

Application

Food Processing, Pharmaceutical and Other Applications

Standards

NEMA PremiumÂ®

Features

Washdown Duty Motors

Specifications

Amperage Rating:	1.06 A
Application Type:	General Purpose AC Motors
Bearing Type:	Ball
Dimensions:	11-1/4 in L
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	56C
Frequency Rating:	60 Hz
Horsepower:	0.75 hp
Insulation Class:	Class F
Material:	Stainless Steel
Mounting Type:	C-Face Footless
Phase:	3 ph
Service Factor:	1.15
Shaft Size:	0.625 in Dia x 2.06 in L
Speed:	1800 rpm
Temperature Rating:	40 deg C
Voltage Rating:	230/460 VAC
