704000A03F060 WOO

Name: 704000A03F060 WOO
Brand: Molex/Woodhead
SKU: 704000A03F060 WOO
Availability: OutOfStock

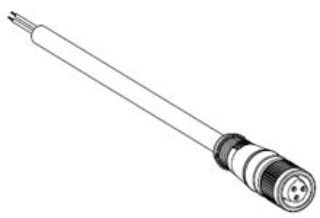

Actual Product May Vary From Image

Product Details

Manufacturer:

Molex/Woodhead

Manufacturer part number:

704000A03F060

CBT Inventory

Vendor Inventory

CBT - CINCINNATI

CBT - SPRINGBORO

CBT - SIDNEY

CBT - LEXINGTON

CBT - LOUISVILLE

Availability:

Expected Leadtime 12 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Brad®

Type

Single Ended Threaded

Description

Micro-Change® connectors are designed to withstand harsh-industrial environments and their superior quality assures a very reliable connection for control elements in automated equipment. These IEC 61076-2-101 compliant connectors allow fast and simple connections to 12 and 18 mm sensors, encoders, switches and other input and output devices in industrial machinery. Brad® complete line of M12 connectivity provides a quick-connect wiring system that eliminates field install cabinets and minimizes field wiring termination errors.

Brad® Micro-Change® Woodhead® Cordset, Single Ended Threaded, Series: 120072, Straight Female x Pigtail Connector, 1/2-20 UNF Connector, PVC Connector, 18 AWG AWM Cable, 1.83 m Cable Length, PVC Cable, 4 Pole, Dual Keyway, 250 VAC/VDC, 4 A, Green/Red/Red-Black/Red-White Wire Pin, IEC 61076-2-101 IEC, NEMA 6 NEMA Rating

Standards

UL File No. E152210 | UL 2464

Features

Dual key connectors with 1/2-20 UNF threaded couplers
Traditionally used with AC powered sensors
IP67/IP68 rated for harsh environments
Patented anti-vibration feature to prevent loosening under high vibration applications
Without LED indicator

Specifications

Amperage Rating:	4 A
Cable Length:	1.83 m
Cable Material:	PVC
Cable Type:	18 AWG AWM
Connector Material:	PVC
Connector Size:	1/2-20 UNF
Connector Type:	Straight Female x Pigtail
Country of Origin:	MX
IEC Rating:	IEC 61076-2-101
Keyway:	Dual
NEMA Rating:	NEMA 6
Number of Poles:	4
Series:	120072
Voltage Rating:	250 VAC/VDC
Wire Pin Colors:	Green/Red/Red-Black/Red-White
