703001D02F120 WOO

Name: 703001D02F120 WOO
Brand: Molex/Woodhead
SKU: 703001D02F120 WOO
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Molex/Woodhead

Manufacturer part number:

703001D02F120

CBT Inventory

Vendor Inventory

CBT - CINCINNATI

CBT - SPRINGBORO

CBT - SIDNEY

CBT - LEXINGTON

CBT - LOUISVILLE

Availability:

Expected Leadtime 7 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Brad®

Type

Single Ended

Alternate Supplier #

Grainger - 2EPD9

Description

Micro-Change® (M12) industry standard connectors are rugged, compact, sealed connectors used for sensor/actuator connectivity in industrial control applications. Micro-Change® (M12) connectors are designed to withstand harsh-industrial and weather environments with superior quality that assures very reliable connections for control elements in automated equipment. These high-quality connectors allow fast and simple replacement of sensors, encoders, switches and other input and output devices in industrial machinery.

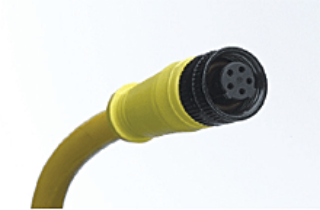

Brad® Micro-Change® Woodhead® Cordset, Single Ended, Series: 120072, 90 deg Female x Straight Pigtail Connector, 1/2-20 UNF Connector, PVC Connector, 22 AWG Cable, 3.66 m Cable Length, PVC Cable, 3 Pole, Dual Keyway, 250 VAC/VDC, 4 A, Brown/Blue/Black Wire Pin

Application

For AC powered sensors

Standards

CSA File No. LR6837 | UL 2661

Features

M12 design meets IEC specifications, IP67 rating
Industry standard interface compatible with a wide array of sensors and switches
Provides a longer lasting, high performance electrical contact
Prevents the coupler from loosening even under extreme vibration
Harsh duty receptacle

Specifications

Amperage Rating:	4 A
Cable Length:	3.66 m
Cable Material:	PVC
Cable Type:	22 AWG
Connector Material:	PVC
Connector Size:	1/2-20 UNF
Connector Type:	90 deg Female x Straight Pigtail
Country of Origin:	US
Keyway:	Dual
Number of Poles:	3
Series:	120072
Voltage Rating:	250 VAC/VDC
Wire Pin Colors:	Brown/Blue/Black
