7000CYDUP4 NAC

Name: 7000CYDUP4 NAC
Brand: Nachi Bearings
SKU: 7000CYDUP4 NAC
Availability: OutOfStock

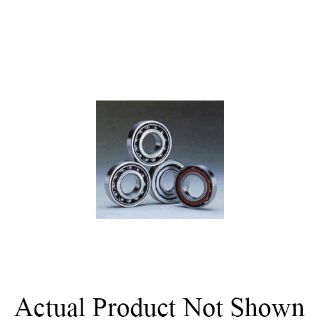

Actual Product May Vary From Image

Product Details

Manufacturer:

Nachi Bearings

Manufacturer part number:

7000CYDU/GLP4

CBT Inventory

Vendor Inventory

CBT - CINCINNATI

CBT - SPRINGBORO

CBT - SIDNEY

CBT - LEXINGTON

CBT - LOUISVILLE

Availability:

Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

NACHI

Type

Standard

Description

The single-row angular contact ball bearing was designed to support radial, axial or composite loads, however, the axial load must be in one direction. The direction of the load through the balls forms the contact angle. This Super Precision Angular Contact Ball Bearing is tailored toward the machine tool industry. It is manufactured to very high quality standards (ISO: Class 4, ABEC7) and has a 15 deg contact angle which is great for very high speed and spindle applications. These bearings are generally used in pairs because axial forces are generated when radial loads are applied. This is a matched duplex set (two bearings) of Universal ground bearings that can be arranged in any configuration. These bearings are most commonly used in high speed spindle applications.

NACHI Precision Angular Contact Ball Bearing, Standard, Series: 7000C, 10 mm Bore, 26 mm OD, 1 Row, 8 mm Width, 15 deg Contact Angle, Open Closure, 8700 N Dynamic/5000 N Static Load, Steel Bearing, Polyamide Cage, 50700 rpm Grease/69400 rpm Oil Maximum, 250 deg F

Application

For high-speed precision machining (high-speed inline center) and precision spindle support

Features

Low noise
Light preload is standard
High quality bearing steel
Ball guided polyamide cage
Super honed raceways for high accuracy, improved lubrication and extended life
Normally stocked as universal pairs or universal singles
The raceways of both the inner and outer rings of this bearing type are made with a set contact angle
This bearing type is generally used in adjacent positions

Specifications

Bearing Material:	Steel
Bore Diameter:	10 mm
Cage Material:	Polyamide
Closure Type:	Open
Contact Angle:	15 deg
Load Capacity:	8700 N Dynamic/5000 N Static
Maximum Speed:	50700 rpm Grease/69400 rpm Oil
Number of Rows:	1
Outside Diameter:	26 mm
Series:	7000C
Width:	8 mm
